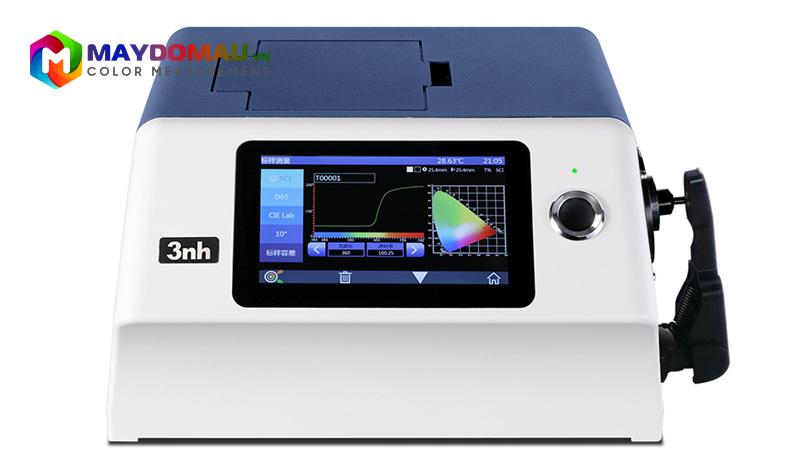

3nh YS6003 Benchtop Spectrophotometer

3nh YS6003 Benchtop Spectrophotometer

The 3nh YS6003 spectrophotometer can accurately measure and express various color difference formulas and colorimetric indices across multiple color spaces. An integrated temperature sensor monitors and compensates for the testing environment to guarantee higher measurement precision. It is widely implemented for reflective sample auditing, translucent/transparent sample color transmission, and continuous quality control across the plastics, electronics, paint and inks, textiles, commercial printing, and other core industrial sectors.

Key Features:

1. Premium Hardware Configuration: 7-inch TFT color capacitive touchscreen display; Concave Diffraction Grating array.

2. 256-Element Dual-Array CMOS Image Sensor; High-stability, long-lifespan Xenon lamp source.

3. Simultaneous Reflectance and Transmittance Spectrophotometry yielding precise Lab values, highly suitable for color formulation matching and executing accurate color transmission.

4. Automated measuring aperture recognition. Capable of switching freely between 3 measuring apertures: Φ 25.4mm, 8mm, and 4mm.

5. Integrated temperature sensor helps monitor and execute measurement temperature compensation to guarantee higher accuracy in testing.

6. Extended Wavelength Range from 360nm to 780nm. Can be deployed to test fluorescent samples with broad applicability and simple operation.

7. Independent light source detector to guarantee stable illuminant output.

8. Multiple Measuring Modes: Quality Control Analysis Mode, Standard Sample Mode; satisfying broader user application requirements.

9. Abundant auxiliary accessories, sample holder brackets, and fixed fixtures, suitable for more versatile working conditions.

10. Expansive data logging storage capacity, recording test results for over 20,000 products.

11. Built-in camera viewfinder locating mechanism.

12. More powerful extended functionalities integrated within the proprietary PC software.

Technical Specifications:

Practical Applications of the 3nh YS6003

As a versatile benchtop spectrophotometer, the 3nh YS6003 serves as a core master reference instrument within the following sectors:

• R&D Labs and QC Departments of Plastics & Chemical Corporations: Calibrating and benchmarking virgin plastic pellet profiles, flexible polymer films for packaging, technical engineering panels, and incoming chemical liquid formulations.
• Glass Processing & Optical Eyewear Industries: Quantifying luminous transmittance curves, opacity, haze, and color deviations over architectural building panels, automotive windshield glazing elements, and precision camera lenses.
• Paint, Coatings & Thick-Film Facades: Evaluating advanced paint mixing formulas, color matching, and quality auditing over powder coatings applied to premium mechanical structural components.
• Textiles, Dyeing & Paper Production: Analyzing dye recipes, color matching uniformity, and monitoring optical brightening agents (OBAs) on woven yarns, fabrics, and high-end export paper grades.
