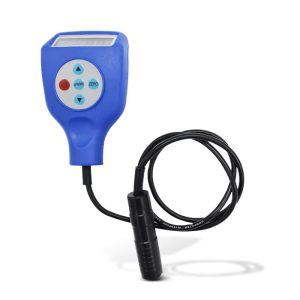

3nh YT4200-P7 Coating Thickness Gauge (0~1250μm) is a digital, high-precision measurement device featuring a separated type probe, specially designed to measure the thickness of insulating coatings (such as paint, powder coatings, plastics, porcelain enamel…) on non-magnetic metal substrates (NFe) like aluminum, copper, brass, and stainless steel.

Product Highlights

• Non-destructive Measurement Method: Helps accurately determine the thickness of paint or plating layers without causing any affection or damage to the sample surface.
• Flexible Separated Probe Design: The probe is connected to the device via an extension cable, allowing users to easily insert the probe into small corners, inner pipe surfaces, or complex machine parts that integrated probes cannot reach.
• High Accuracy and Stability: The probe features high sensitivity, fast response times, and a clear, intuitive display screen.
• Diverse Calibration Support: The device allows for Zero-point calibration, 1-point, or multi-point calibration using the included standard calibration foils, ensuring the highest accuracy for each specific material.

Technical Specifications:

Substrate: NFe

Structure: Separated type

Resolution: 0.1/1μm

Measuring range: 0~1250μm

Minimum measuring area: 10×10mm

Minimum substrate thickness: Non-Magnetic: 0.05mm

Minimum curvature: Convex radius: 5mm; Concave radius: 10mm

Display unit: μm

Power supply: 2 x No. 5 batteries (AA alkaline batteries or nickel-metal hydride rechargeable batteries)

Dimensions: 102×66×24mm

Weight: 102×66×24mm

Operating environment: 0~40ºC (10~90%RH non-condensing)

Storage environment: -10~50ºC

Package includes: 1 main unit (aluminum base), wristband, calibration board

Optional Accessories: Calibration board (12μm, 25μm)

Practical Applications

The product is an essential and important quality control (QC/QA) inspection device, widely used in:

• Automotive and Motorcycle Industry: Checking the thickness of anti-rust paint and color paint layers on aluminum and alloy body frames.
• Household Accessories & Electronics Manufacturing: Measuring powder coatings and protective layers on copper, aluminum, and stainless steel parts.
• Surface Treatment and Metal Processing: Quality inspection of insulating coatings, polymer films, and protective plastic films.
• Industrial Monitoring: Serving in quality inspection laboratories and harsh workshop environments.
