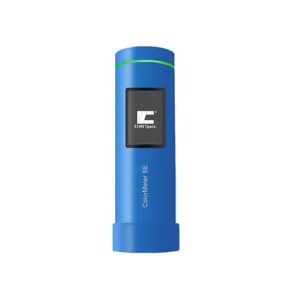

CHN SPEC ColorMeter SE Colorimeter

CHN SPEC ColorMeter SE Colorimeter

The CHN SPEC ColorMeter SE (Standard Edition) Colorimeter is a smart pocket-sized color reading device. Belonging to the breakthrough ColorMeter ecosystem, the SE version is streamlined to focus on the most basic needs: quick measurement, color difference inspection, and standard color code searching via a mobile application, making it an indispensable “digital color palette” for anyone working with color.

Outstanding Features

• Ultra-portable, pocket-sized design: The device has an extremely compact size and lightweight, making it easy to carry in a pocket or bag to any construction site or factory. The ergonomic design makes one-handed measurement operation incredibly convenient.
• Standard D/8 (SCI) optical system: Despite being a mainstream segment device, the ColorMeter SE is still equipped with a D/8 optical structure (diffuse illumination, 8-degree viewing angle) and measures in SCI (Specular Component Included) mode. This helps the measurement results accurately reflect the true color of the material, complying with industrial standards.
• Power from the Mobile App: Through Bluetooth connection, the device fully synchronizes with the smartphone application (iOS / Android). The most valuable feature is the ability to automatically analyze the measured color and recommend the closest color codes from a massive electronic color library (such as Pantone, RAL, NCS).
• Intuitive integrated screen: The body features a small (IPS) screen that directly displays basic color parameters (such as Lab*) and color difference alert results (Pass/Fail). You can measure quickly without necessarily having to always look at the phone screen.
• Automatic calibration: The device’s protective cap also serves as a magnetic white calibration base. Every time you close the cap, the device automatically recognizes and performs calibration, keeping the instrument always ready in its most accurate measurement state.

Technical Specifications:

Optical System: D/8, SCI

Color Spaces, Color Difference Formulas and Indices: CIE-Lab, ΔE*ab, reflectance curve

Light Source: LED (Full-band balanced LED light source)

Measurement Aperture: 8mm

Wavelength Interval: /

Wavelength Range: /

Repeatability: ΔE≤0.1 (when a white calibration tile is measured 30 times at 5-second intervals after calibration)

Measurement Time: 1.5s

Interface: USB (for charging only), Bluetooth

Illuminant Condition: D65

Observer Angle: 10°

Screen: IPS Full color (135*240, 1.14inch)

Battery: A single full charge can measure continuously 10,000 times

Calibration: Automatic

Language: English and Chinese

Software Support: Android, iOS

Weight: 90g

Dimensions: Diameter 31mm, Height 102mm

Practical Applications

With the advantages of reasonable cost and high mobility, the CHN SPEC ColorMeter SE is a perfect tool for:

• Interior Design and Architecture: Take actual color samples on-site (wall paint color, curtains, wood materials) and instantly find the corresponding paint/color code to advise customers.
• Paint business and mixing: Sales representatives carry it to scan actual colors requested by customers and compare them with the company’s color chart.
• Printing, packaging, and textiles (Basic level): Quickly inspect color deviation between products to sort Pass/Fail at warehouses or small production workshops.
• Graphic design and creative work: Get color inspiration from the real world and convert it into digital color codes (RGB, Hex) for computer-based design.
