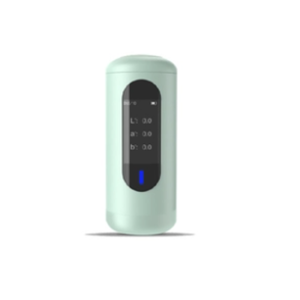

CHN SPEC CR-30 Colorimeter (45/0, ΔE*00≤0.05, 400-700nm, 0.01)

CHN SPEC CR-30 Colorimeter (45/0, ΔE*00≤0.05, 400-700nm, 0.01)

The CHN SPEC CR-30 Colorimeter is a compact portable color measurement device (Colorimeter) that possesses the power of a specialized instrument. Inheriting the standard 45/0 optical system and featuring a powerful upgrade in display resolution, the CR-30 is a perfect solution for visual color evaluation, especially on flat or matte surfaces, helping to most accurately simulate how the human eye perceives color under natural daylight.

Outstanding Features

• Ultra-high display resolution (0.01): The biggest difference of the CR-30 compared to the CR-10 and CR-20 versions is its ability to display results with a resolution of up to 0.01. This allows users to read extremely small color changes, providing more detailed data to serve strict quality control (QC) requirements.
• Standard 45/0 optical system: The device uses an illumination structure at a 45-degree angle and receives signals at a 0-degree angle. This system helps eliminate specular reflection (glare) caused by surface gloss, ensuring the measurement results truly reflect human visual perception.
• Full-spectrum technology (400-700nm): The device is equipped with a sensor that scans the entire visible light spectrum (400-700nm), collecting a large amount of spectral data to analyze color with high accuracy and a much wider color gamut compared to traditional models using RGB sensors.
• Excellent repeatability and stability: The CR-30 delivers impressive repeatability at ΔE*00 ≤ 0.05. The ability to maintain this stability helps manufacturers confidently cross-check multiple times or compare colors between different production shifts without worrying about instrument error.
• Integrated crisp screen & Smart connectivity: The device features a color screen right on the body, allowing users to read results and receive Pass/Fail alerts directly. Additionally, the CR-30 supports Bluetooth connection to mobile applications (iOS/Android), helping to store data, share reports, and look up international color codes (Pantone, RAL, NCS, etc.).

Technical Specifications:

Measurement Geometry: 45/0

Measurement Indices:

RGB, Hex, Lab, LCh, HSB, LRV, Spectral Reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE-Luv, XYZ, Yxy, Color Difference (ΔE*ab, ΔE*cmc, ΔE*94, ΔE*00),

Whiteness Index (ASTM E313-00, ASTM E313-73, CIE/ISO, AATCC, Hunter, Taube Berger Stensby),

Yellowness Index (ASTM D1925, ASTM E313-00, ASTM E313-73),

Blackness (My, dM), Staining Fastness, Color Fastness, Tint (ASTM E313-00),

Color Density CMYK (A, T, E, M), Metamerism Index Milm, Munsell, Opacity, Color Strength (Dye strength, tinting strength)

Light Source: LED (Full-band balanced LED light source)

Measurement Aperture: 4mm

Wavelength Interval: 10nm

Wavelength Range: 400nm-700nm

Measurement Repeatability: ΔE*00≤0.05

Inter-instrument Agreement: ΔE*00＜0.4

Display Resolution: 0.01

Measurement Time: 1.0 second

Interface: USB, Bluetooth

Illuminant Conditions: A, B, C, D50, D55, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CWF, U30, U35, DLF, NBF, TL83, TL84

Observer Angles: 2°, 10°

Screen: Full color IPS screen (135*240, 1.14 inches)

Battery Capacity: Capable of 10000 continuous measurements on a single full charge

Language: Chinese, English

Calibration: Automatic calibration

Software Support: Android, iOS, WeChat applet, Windows

Weight: Approx. 75g

Dimensions: Diameter: 33mm, Height: 84mm

Storage: App mass storage

* Standard deviation measured 30 times on the white calibration tile at 5-second intervals.

* Average value measured across 12 color tiles of the BCRA Series II.

Standard Accessories: Instrument * 1, USB data cable * 1, User manual * 1

Practical Applications

With the specific 45/0 optical system and 0.01 resolution, the CHN SPEC CR-30 is a powerful tool for:

• Printing and packaging industry: Highly detailed color deviation control on paper, cardboard, and flexible packaging films, ensuring the final product perfectly matches the design.
• Road marking paints and traffic signs production: Meeting strict standards for color and retroreflectivity measurement at a 45/0 angle for the traffic sector.
• Matte plastics, furniture, and textiles industry: Evaluating the color of patterned, matte, or fabric surfaces without being affected by light reflection effects.
