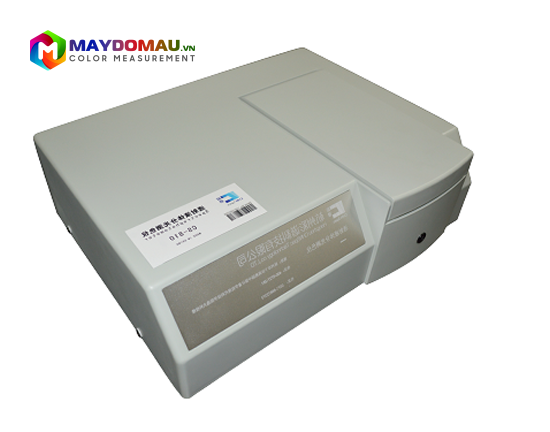

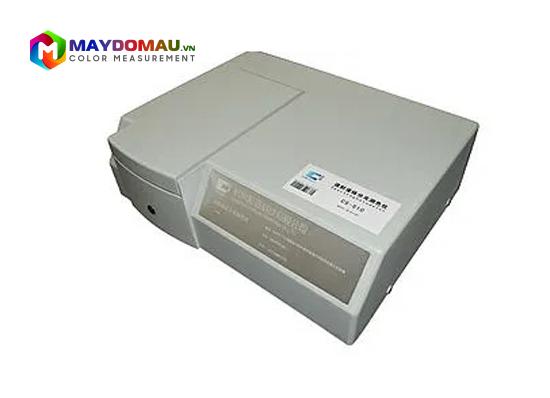

CHN SPEC CS-810 Spectrophotometer

CHN SPEC CS-810 Spectrophotometer

The CHN SPEC CS-810 Spectrophotometer (Transmittance Spectrophotometer) is a leading color and transmittance analysis solution for laboratories. Unlike models that primarily measure surface reflectance, the CS-810 focuses entirely on evaluating the color, haze, and light transmittance of liquid samples, films, glass, and transparent plastics.

Outstanding Features

• Specialized D/0 optical system (Transmittance): The device uses a diffuse illumination geometric structure with a 0-degree receiving angle (D/0). This design complies with international standards for color and transmittance measurement of materials that are not completely opaque.
• Diverse measurement of specialized indices: The CS-810 not only measures standard Lab* color values but also integrates specialized scales for the chemical and liquid industries such as: Pt-Co/APHA/Hazen, Gardner, ASTM, Saybolt color scales, and Haze.
• Outstanding accuracy and stability: The device is equipped with a wide-band spectral sensor from 360-780nm and a full-spectrum LED band, delivering excellent repeatability at dE*ab ≤ 0.015 and data processing capabilities with high wavelength resolution, ensuring measurement results are always accurate and reliable.

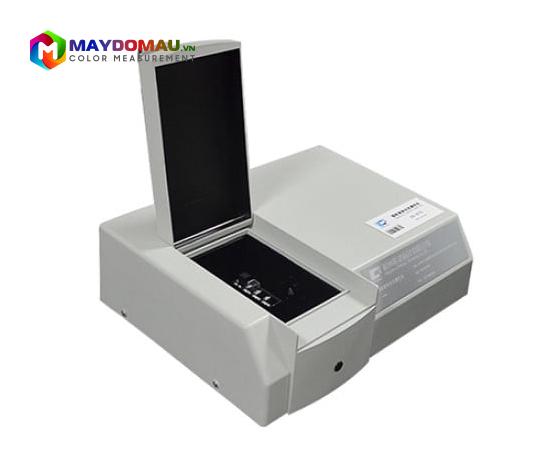

• Expanded and flexible measurement chamber: The sample placement area is spaciously designed with no overhead space limitations, allowing users to easily place cuvettes of varying thicknesses (from 10mm, 20mm to 50mm, 100mm) or large-sized glass plates and films.
• Powerful data management: The device connects to management software on a computer (PC), helping users perform in-depth analyses, draw spectral graphs, set Pass/Fail tolerances, and professionally export laboratory-standard reports.

Technical Specifications:

In addition to measuring the transmittance of materials, the instrument can also measure the APHA / Pt-Co and Gardner color scales of products such as plastics, solvents, acids, perfumes, and varnishes. It is also used to measure the Saybolt chromatic scale of gasoline, white oil, kerosene, and lubricating paraffin oils. The technology eliminates the subjectivity of visual color evaluation and provides better sensitivity and maximum repeatability.

Optical System: d/0, SCI, SCE, ETC

Integrating Sphere Size: Φ40mm

Illumination Light Source: CLEDs (Full-band balanced LED light source)

Sensor: Dual optical path sensor array

Wavelength Range: 400-700 nm

Wavelength Interval: 10nm

Spectral Half-width: 5nm

Reflectance Range: 0-200%

Reflectance Resolution: 0.01%

Observer Angles: 2° / 10°

Measurement Interval: 2 seconds

Measurement Time: 0.5 seconds

Color Spaces: CIE-L*a*b, L*C*h, CIE-L*u*v, XYZ, Yxy, Transmittance

Color Difference Formulas: CIE-L*a*b, L*C*h, CIE-L*u*v, XYZ, Yxy, Transmittance

Interface: USB

Data Storage: Mass storage

Dimensions: 475 * 340 * 150mm (L * W * H)

Weight: Approx. 7kg

Standard Accessories: Power cord, color management software, control software, data cable, black calibration tube, sample holder

CS-810 transmission type liquid spectrophotometer is a high performance spectrometer specially designed for measuring liquid transmittance, absorbance, concentration, chromaticity and other parameters. The instrument adopts D/0 measurement structure and integrates technologies such as full-band light source, single grating optical path spectroscopy system and other real-time calibrations, so that the resolution of the instrument reaches 0.0001, the standard deviation of transmittance is within 0.08%, and the chromaticity value: ΔE*ab 0.015.

D / 0 structure is adopted

Suitable for liquid and glass color measurement

Platinum, cobalt and Gardner index — characterization of liquid yellow degree

Practical Applications

With its superior ability to handle transparent and liquid samples, the CHN SPEC CS-810 is an indispensable device in:

• Chemical and Petroleum Industry: Color measurement of solvents, liquid chemicals, lubricating oils, and rosin (according to APHA, Gardner, and Saybolt standards).
• Food and Beverage Industry: Inspecting the color and clarity of beverages, alcoholic drinks, cooking oils, essential oils, and syrups.
• Plastics and Packaging Industry: Evaluating the transmittance and haze of plastic films, polycarbonate (PC) sheets, acrylic (PMMA), and PET films.
• Glass Manufacturing Industry: Measuring optical indices on architectural glass, windshields, or camera lenses.
