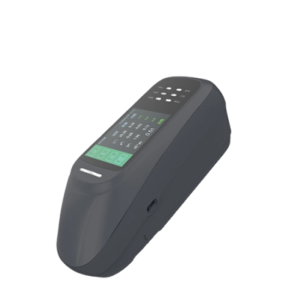

CHN SPEC DC-23D Handheld Spectrophotometer (D/8, dE*ab≤0.02, Φ11mm/Φ6mm)

CHN SPEC DC-23D Handheld Spectrophotometer (D/8, dE*ab≤0.02, Φ11mm/Φ6mm)

The CHN SPEC DC-23D Handheld Spectrophotometer is a color measurement device designed to be compact and durable while still possessing a modern optical technology platform. It is a powerful tool that helps manufacturers standardize color inspection processes, eliminating errors caused by human visual perception in industries such as plastics, coatings, printing, and textiles.

Outstanding Features

D/8 Optical System (SCI/SCE): Similar to high-end models, the device uses a diffuse illumination geometric structure with an 8-degree viewing angle (D/8). The SCI (Specular Component Included) and SCE (Specular Component Excluded) measurement modes help users flexibly evaluate both the actual color and the influence of surface gloss/roughness.

High Stability Repeatability: The device delivers reliable measurement results with a repeatability of dE*ab ≤ 0.02. This parameter fully meets strict quality control (QC) requirements, ensuring color consistency in mass production.

Integrated Dual Apertures: The device is equipped with 2 standard measurement apertures: Φ11mm and Φ6mm. Users can easily switch between the 11mm aperture (for flat, uniform surfaces) and the 6mm aperture (for smaller details or slightly curved surfaces) without needing to invest in a new machine.

Ergonomic and Intuitive Design: The device features a simple interface, a clear display screen, and smooth buttons, enabling rapid measurement operations. The streamlined design allows for a firm grip, preventing hand fatigue during continuous measurement.

Smart Connectivity: The DC-23D supports USB and Bluetooth connections, compatible with computer software (PC) and mobile applications. This makes it easy to store a database of standard colors, analyze tolerance charts, and export professional reports.

Technical Specifications:

Measurement Structure: D/8, SCI+SCE

Light Source Lifespan: 6 million cycles

Wavelength Range: 360-740nm

Simultaneous SCI+SCE Measurement: Supported

NetProf Network Calibration: Supported

Calibration Method: BCRA-certified black and white board energy calibration, green board wavelength accuracy calibration

Measurement Repeatability: dE*ab≤0.02

Inter-instrument Agreement: dE*ab≤0.25

Display Accuracy: 0.01

Light Source: Full-band balanced LED light source + Xenon lamp

UV Light Source: Yes

Aperture: Φ11mm, Φ6mm

Measurement Indices/Standards: Spectral reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE-Luv, XYZ, Yxy, RGB Color Difference (ΔE*ab, ΔE*cmc, ΔE*94, ΔE*00), Whiteness (ASTM E313-00, ASTM E313-73, CIE, ISO2470/R457, AATCC, Hunter, Taube Berger Stensby), Yellowness (ASTM D1925, ASTM E313-00, ASTM E313-73), Blackness (My, dM), Color Fastness, Tint (ASTM E313-00), Color Density CMYK (A, T, E, M), Metamerism index Milm, Munsell, Hiding power, Strength (Dye strength, color strength)

Illuminant Conditions: A, B, C, D50, D55, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CWF, U30, U35, DLF, NBF, TL83, TL84, ID50, ID65, LED-B1, LED-B2, LED-B3, LED-B4, LED-B5, LED-BH1, LED-RGB1, LED-V1, LED-V2

Observation Method: Camera

Calibration: Smart automatic calibration

Software Support: Android, iOS, Windows, WeChat applet

Guaranteed Accuracy: First-class measurement qualification guaranteed

Standard Observer: 2°, 10°

Integrating Sphere Diameter: 40mm

Standards: CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7

Spectroscopic Method: Grating

Sensor: Dual-column high-precision CMOS array sensor

Wavelength Interval: 10nm

Reflectance Measurement Range: 0-200%

Reflectance Resolution: 0.01%

Measurement Time: Approx. 1 second

Interface: USB, Bluetooth

Screen: 3.5-inch full-color screen

Battery Capacity: 8000 continuous measurements on a single charge, 7.2V/3000mAh

Language: Simplified Chinese, English

Storage: Device: 10,000 items; APP: Mass storage

Dimensions: 233mm*77mm*93mm

Weight: Approx. 600g

Practical Applications

With the combination of accuracy and convenience, the CHN SPEC DC-23D is widely applied in:

• Quality control (QC) departments and production workshops for fast color inspection.
• Color quality control in the plastics industry (plastic pellets, injection-molded components).
• Evaluating color deviation in industrial paints, electrostatic powder coatings, and surface plating.
• Quality inspection of printing inks, paper, packaging, and textile dyeing products.
