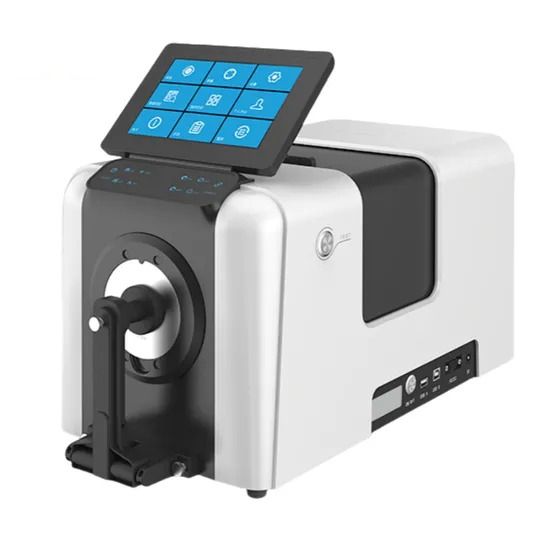

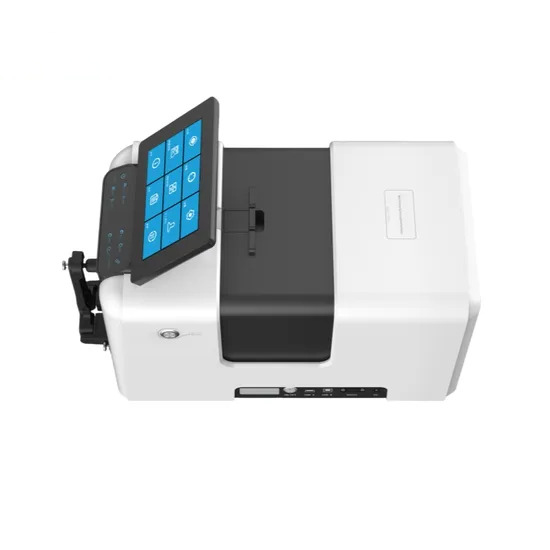

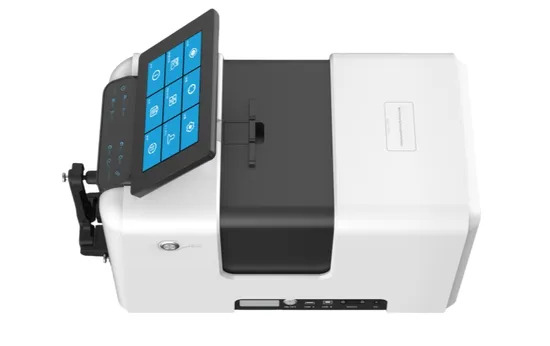

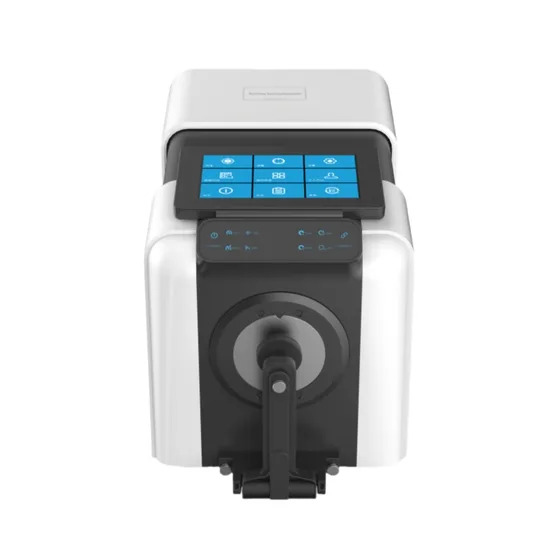

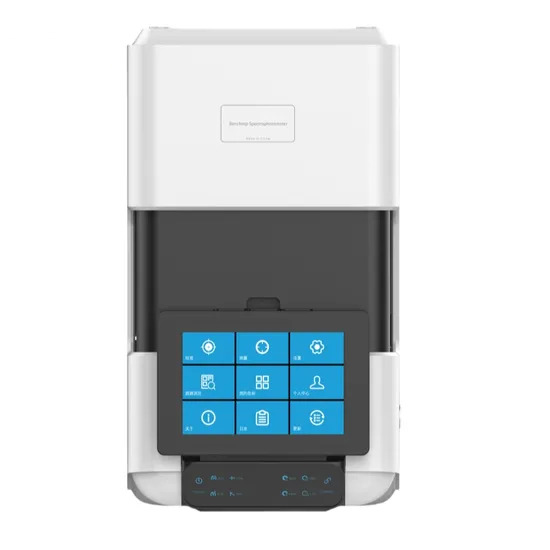

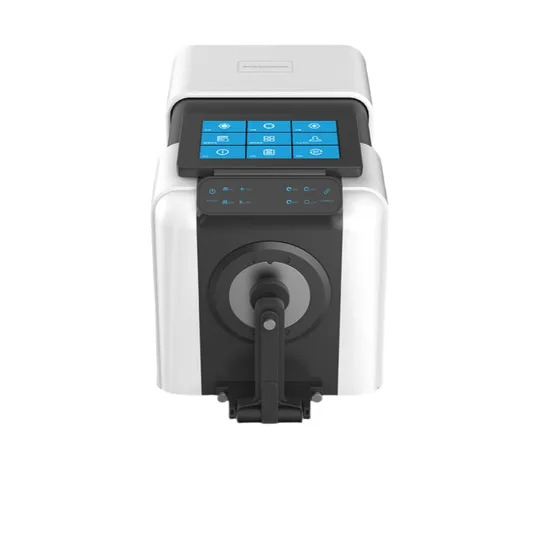

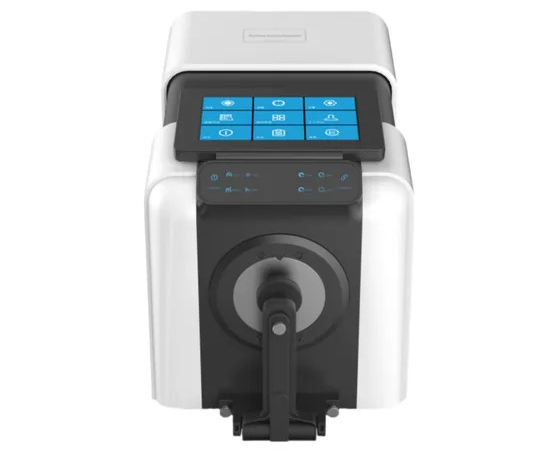

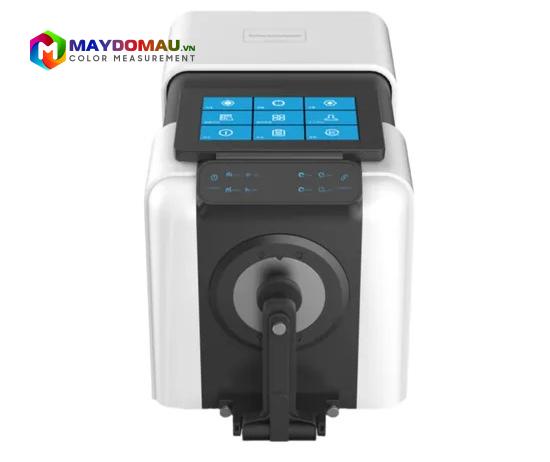

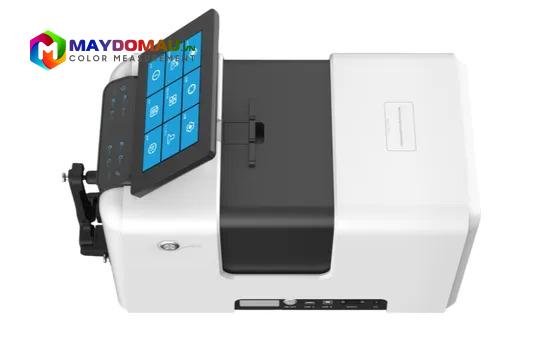

CHN SPEC DS-39D Benchtop Spectrophotometer (d/8, 360nm-780nm, XLAV ΔE*ab 0.08)

CHN SPEC DS-39D Benchtop Spectrophotometer (d/8, 360nm-780nm, XLAV ΔE*ab 0.08)

The CHNSpec DS-39D Benchtop Spectrophotometer is a new generation benchmark-class color measurement device designed to deliver outstanding accuracy in color analysis and control. With an advanced optical sensor system, this instrument meets the most stringent standards in both R&D laboratories and industrial quality control (QC) processes.

Key Features

Differential Spectrum Engine: The self-developed differential engine enhances the input light flux by 50% and increases the spectral resolution by 30%, while providing a better signal-to-noise ratio.

Dual Optical Path Design & Ultra-high Repeatability: The dual optical path design monitors the light source energy fluctuations while measuring the sample signal, reducing interference and improving measurement repeatability to an excellent level of ΔE*ab ≤ 0.005.

Inter-instrument Agreement: Reaches XLAV ΔE*ab ≤ 0.08, ensuring measurement data is always consistent with other international standard measurement systems.

Ultra HD Positioning Camera: Equipped with an observation camera with a resolution of up to 1400dpi, helping users precisely position the measurement point on the sample, which is especially useful for samples with patterns or tiny details.

Versatile Automatic Aperture Switching: The device supports multiple measurement aperture sizes and automatically recognizes them when switched, including: XLAV (Φ30mm), LAV (Φ18mm), MAV (Φ11mm), and SAV (Φ6mm), making it easy to measure samples of various sizes.

Comprehensive Smart Calibration System: Integrates automatic calibration features to maintain long-term stability. Notably, the device features fluorescence calibration that automatically adjusts UV intensity, providing accurate data when measuring materials containing fluorescent substances.

Technical Specifications:

Illumination/Measurement Conditions:

Reflectance: d/8 (Diffuse illumination, 8° viewing angle)

Simultaneous SCI/SCE measurement, complies with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, DIN5033 Teil7, JIS Z8722 condition C, ASTM E1164, ASTM-D1003-07 Transmittance: d/0 (Diffuse illumination, vertical viewing)

Sensor: Differential spectrum engine

Spectral Method: Concave grating

Integrating Sphere Diameter: 152mm

Wavelength Range: 360nm-780nm

Wavelength Interval: 10nm

Reflectance Range/Resolution: 0-200%, 0.01%

Light Source: Pulsed Xenon lamp and LED

UV Measurement: UV included, 400nm cutoff, 420nm cutoff, 460nm cutoff

Measurement Time: Single mode <2 seconds

Measurement/Illumination Aperture:

Reflectance: XLAV Φ25.4mm/Φ30mm; LAV Φ15mm/Φ18mm; MAV Φ8mm/Φ11mm; SAV Φ3mm/Φ6mm. Users can customize the aperture, and aperture switching is automatically recognized

Transmittance: Φ17mm/Φ25mm

Transmittance Sample Size: No limit on sample width and height, thickness ≤50mm

Repeatability: ΔE*ab≤0.005, Spectral reflectance/transmittance ≤0.1%

Inter-instrument Agreement: XLAV ΔE*ab 0.08

Long-term Repeatability: XLAV chromaticity value: standard deviation ΔE*ab 0.01 or less (under constant temperature conditions, measuring the white calibration tile every hour for 24 hours)

Standard Observer: 2° and 10°

Observation Light Source: A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-8

Language: Simplified Chinese, English, Traditional Chinese, Russian, Spanish, Portuguese, Japanese, Thai, Korean, German, French, Polish

Display: Spectral data, Spectral graph, Colorimetric data, Color difference data, Chromaticity diagram, PASS/FAIL result, Simulated color, Color evaluation, Haze, Liquid chromaticity, Color offset

Colorimetric Index: CIE LAB, CIE LUV, LCh, Hunter Lab, Yxy, XYZ, Musell, s-RGB, βxy

WI (ASTM E313-00, ASTM E313-73, CIE/ISO, AATCC, Hunter, Taube Berger, Stensby)

YI (ASTM D1925, ASTM E313-00, ASTM E313-73), Tint (ASTM E313-00), Metamerism Index Milm, Color Fastness, Changing Color Fastness, ISO Brightness, R457, Density A, Density T, Density E, Density M, APHA/Hazen/Pt-Co (Platinum-Cobalt index), Gardner (Gardner index), Saybolt (Saybolt index), ASTM Color, Haze, Total Transmittance, Hiding Power, Strength, Intensity

Color Difference: ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc, ΔE*94, ΔE*00, ΔE*ab(hunter), 555 tone classification

Storage Memory: 8GB

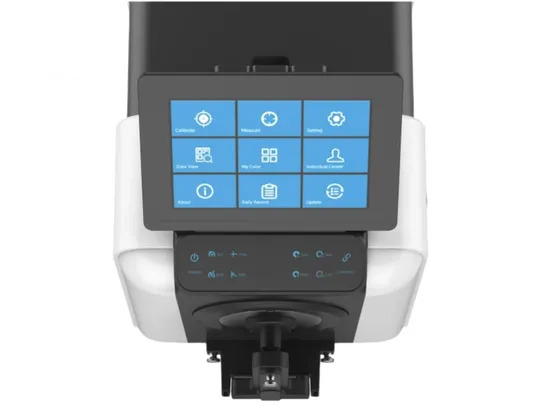

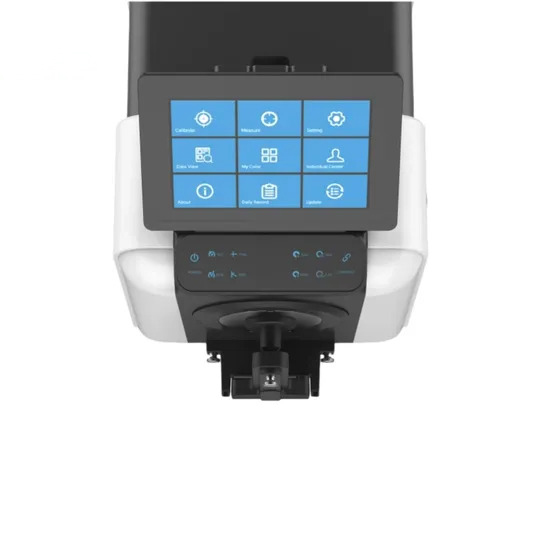

Screen Size: 7-inch capacitive touch screen

Operating System: Android

Power Adapter: Regulated DC power supply

Operating Temperature: 5-40℃, relative humidity 80% (at 35℃) non-condensing

Storage Temperature: -20-45℃, relative humidity 80% (at 35℃) non-condensing

Standard Accessories: Power adapter, USB cable, transmission fixture, software USB drive, black cavity, white tile, green tile, fluorescence calibration tile, 30mm aperture, 18mm aperture, 11mm aperture, 6mm aperture, support table, cuvette,

Optional Accessories: Heating transmission fixture (including control circuit), vertical bracket, pneumatic lifting rod (including control circuit), small sample holding accessory, cupping reflection tile (non-removable), fiber test box, film fixture, micro-transmission fixture, rod box, European standard plug, US standard plug

Ports: RS-232, USB, USB-B, Bluetooth

Camera Positioning: Ultra HD Camera (1400dpi)

Automatic Calibration: Significantly improves the long-term repeatability of the instrument

Fluorescence Calibration: Automatically adjusts UV intensity to ensure the instrument’s values highly match those of other imported devices when measuring fluorescent materials

Brightness Calibration: Restores the true color of extremely dark samples through a brightness calibration algorithm

Others: The device can measure horizontally, upwards, and downwards (using accessories); Automatic temperature and humidity compensation function; Sample image saving function via PC software

Common Applications

Thanks to its comprehensive analysis capabilities and extremely low error rate, the CHNSpec DS-39D is trusted in the color matching and quality control processes of various industries:

• Paint, coating materials, and electroplating.
• Plastic, packaging, and polymer film manufacturing.
• Dyeing and textile industries.
• Food (color of coffee, citrus, etc.), cosmetics, and pharmaceuticals.
