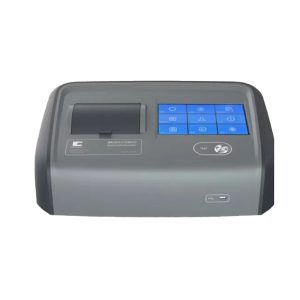

CHN SPEC DS-810N Benchtop Liquid Color Spectrophotometer (d/0, ΔE*ab≤0.05)

CHN SPEC DS-810N Benchtop Liquid Color Spectrophotometer (d/0, ΔE*ab≤0.05)

The CHNSpec DS-810N benchtop liquid color spectrophotometer is a premium absorption and reflectance spectrophotometer series, specifically designed for measuring and analyzing the chromaticity of liquid samples, solutions, plastic pellets, or transparent films.

Featuring a specialized d/0 optical geometry configuration and extremely high repeatability, this device fulfills the most stringent standards in laboratories (Lab) and research & development (R&D) centers across the chemical, food, and pharmaceutical industries.

Technical Specifications:

Measurement condition: d/0 (diffuse illumination, 0-degree viewing angle)

Standards compliance: CIE No.15, ISO 7724/1, ASTM E1164, DIN 5033 Teil7, JIS Z8722 Condition c, ASTM D1209, ASTM D5386, ASTM D6045, ASTM D6166, ASTM D1502

Standalone operation: Not supported

Integrating sphere: Φ40mm, Avian-D completely diffuse coating

Light source: CLEDs full-band LED light source

Sensor: Dual optical path sensor array

Wavelength range: 360–780nm

Wavelength interval: 10nm

Half-band width: 5nm

Measurement range: 0~200%

Resolution: 0.0001

Observer angle: 2°/10°

Observation illuminants: A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-E,LED-F1,V1-LED,V4

Display: Pharmacopoeia color numbers, transmittance data/spectrum, sample chromaticity values, color difference values/map, pass/fail results, color deviation, color simulation

Measurement time: ≤1.5 seconds

Measurement optical path: Standard: 10mm glass cell, 50mm glass cell (optional: 33mm, 100mm)

Color spaces: CIE Lab, LCh, CIE Luv, XYZ, Yxy, transmittance, Hunter Lab Munsell, M1, CMYK

Color difference formulas: ΔEab, ΔECH, ΔEuv, ΔEcmc(2:1), ΔEcmc(1:1), ΔE94, ΔE*00

Other indices: Pharmacopoeia (China, Europe, United States), WI, ISO2470 / R457, Hunter, Taube, Berger Stensby

Repeatability*: Transmittance: standard deviation ≤0.08%; Color value: ΔE*ab≤0.05 (maximum ≤0.04)

Inter-instrument agreement: ΔE*ab < 0.25

Heating function: No

Heating temperature range: No

Audit trail: No

Software support: ColorExpert, Color QC2

Key Features and Technologies

• Advanced Color Index Analysis for Liquids: In addition to standard color spaces like CIE-Lab, XYZ, and Yxy, the device integrates specialized color indices for the liquid and chemical industries, such as: Transmittance, Haze, Platinum-Cobalt color index (Pt-Co / APHA), Gardner color index, Saybolt color index, ASTM D1500…
• Inter-Instrument Agreement: The variation between machines of the same series is extremely low, ensuring color data synchronization when enterprises deploy multiple DS-810N units across different branches or factories.
• Large Touch Screen & Intuitive Interface: Integrates a high-resolution touch screen directly on the body for selecting filters, setting tolerances, and reading results in the form of spectral line charts without requiring a mandatory PC connection.
• Professional PC Color Management Software: Connects to a computer via USB/RS-232 ports and comes with powerful data analysis software, helping store millions of samples, export QC reports as color charts and dynamic data tables, and providing strong support for color formula research.
• Calibration and Self-Diagnosis: The system automatically reminds users to calibrate and features sensors to self-check the status of the hardware, ensuring the equipment always operates under optimal technical conditions.

Practical Applications:

CHN Spec DS-810N is a powerful assistant in quality control (QC) and research & development for liquid, paste, or transparent film products:

• Food & Beverage Industry: Measuring the color and transparency of cooking oil, soft drinks, fruit juice, honey, soy sauce, beer, and wine.
• Cosmetics & Pharmaceutical Industry: Controlling the chromaticity of essential oils, perfumes, liquid detergents, pharmaceutical syrups, liquid excipients, and liquid creams.
• Chemical & Petroleum Industry: Measuring the color index of petroleum, industrial solvents, liquid asphalt, adhesives, and printing chemicals.
• Plastics & Glass Industry: Measuring the haze and total light transmittance of plastic sheets, optical glass, and solar control window films.
