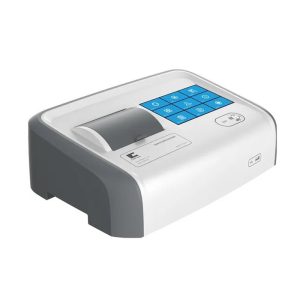

CHN SPEC DS-816N Bench-top Spectrophotometer (d/0, ΔE*ab≤0.01)

CHN SPEC DS-816N Bench-top Spectrophotometer (d/0, ΔE*ab≤0.01)

CHN SPEC DS-816N Bench-top Spectrophotometer is a premium professional bench-top spectral color measurement instrument manufactured by CHNSpec. The highlight of this model lies in its specialized d/8-degree illumination geometry (noting standard d/0 transmission setup), combined with ultra-high precision and repeatability, providing an excellent color measurement and analysis solution for liquids, films, or transparent materials in laboratories and quality control centers (QC/R&D).

Outstanding Technological Features

Specialized d/0 Illumination Geometry: Unlike conventional reflectance measurement instruments, the DS-816N adopts an optical structure of diffuse illumination and perpendicular 0-degree viewing angle (d/0 degree). This geometry strictly complies with international standards for measuring spectral transmittance and color of translucent/transparent materials, allowing accurate analysis of color properties without being affected by light orientation.

Top-Tier Repeatability (ΔE*ab Less Than or Equal to 0.01): This is one of the key indices demonstrating outstanding hardware stability in the industry today. With an ultra-small repeatable error margin (less than or equal to 0.01) when measured on the standard tile, the device ensures absolute data uniformity across measurements, completely eliminating instrument-induced deviations.

Comprehensive Transmittance Spectral Analysis: The device does not merely conduct basic color measurement, but also captures spectral transmittance across the entire visible wavelength range. It provides crucial indices such as: total spectral transmittance, haze, transparency, Yellowness Index, and Whiteness Index, perfectly meeting strict inspection requirements.

Expanded and Flexible Sample Chamber: The chamber design of the DS-816N is highly spacious and flexible, allowing operators to easily place test samples of various sizes. The instrument accommodates a wide range of liquid cuvettes (cells) from small to large dimensions, as well as specialized fixtures to securely hold glass sheets or thin plastic films.

Premium Dual Light Source System: Utilizes a combination of a long-lifespan Pulse Xenon lamp and full-spectrum LEDs, comprehensively covering the spectrum from 360 nm to 780 nm. This light source offers extremely high stability, generates no heat that could alter the properties of liquid samples, and requires no frequent replacements.

Technical Specifications:

Measurement condition:
d/0 (CIE No.15, ISO 7724/1, ASTM E1164, DIN 5033 Teil7, JIS Z8722 Condition c, GB/T 3555, ASTM D156, GB/T 6540, ASTM D1500, ASTM D1209, ASTM D5386, ASTM D6045, ASTM D6166, ASTM D1502)

Standalone operation: Supported

Integrating sphere: Φ40mm, Avian-D completely diffuse coating surface

Light source: CLED (Balanced full-band LED light source)

Sensor: Dual optical path sensor array

Wavelength range: 360-780nm

Wavelength interval: 10nm

Half-band width: 5nm

Measurement range: 0~200%

Resolution: 0.0001

Observer angle: 2°/10°

Observation illuminants: A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V4

Display: Pharmacopoeia color numbers, transmittance map/data, sample chromaticity values, color difference values/map, pass/fail results, color deviation, color simulation, history data color simulation, manual entry of master standard, test report

Measurement time: ≤1.5 seconds

Measurement optical path: Standard: 10mm glass cuvette, 50mm glass cuvette (optional: 33mm and 100mm glass cuvettes)

Color spaces: CIE Lab, LCh, CIE Luv, XYZ, Yxy, Transmittance, Hunter Lab Munsell, MI, CMYK

Other indices: Pharmacopoeia (China Pharmacopoeia, European Pharmacopoeia, US Pharmacopoeia), WI (ASTM E313-20, ASTM E313-73, CIE, ISO2470/R457, Hunter, Taube Berger Stensby), YI (ASTM D1925, ASTM E313-20, ASTM E313-73), Tint (ASTM E313-20), Milm metamerism index, APHA, Hazen, Pt-Co (Platinum-Cobalt index), Gardner (Gardner index), Iron-cobalt index, Saybolt (Saybolt index), ASTM color, EBC (Beer color), ICUMSA color (Sugar chromaticity)

Repeatability:
Transmittance: standard deviation ≤0.08%
Colorimetric value: ΔE*ab≤0.01 standard deviation, maximum ≤0.03

Inter-instrument agreement: ΔE*ab < 0.2

Practical Applications

Thanks to its capability to measure liquid transmittance and color with absolute precision, the CHN SPEC DS-816N is widely used across various fields:

• Chemical, Petroleum, and Solvents Industry: Checking the color and transparency of lubricants, alcohols, acids, gasoline, and industrial solvents to ensure product purity.
• Food and Beverage Industry: Managing color uniformity for soft drinks, beer, wine, fish sauce, cooking oils, or syrups across different manufacturing batches.
• Plastics, Films, and Glass Manufacturing: Measuring haze and light transmittance of architectural glass, automotive glass, packaging plastic films, PE films, eyewear lenses, or acrylic sheets.
• Pharmaceutical and Cosmetics Industry: Controlling the color quality of liquid medicines, perfumes, essential oils, and premium serums to ensure optimal aesthetics and brand identity.

CHN SPEC DS-816N is a leading specialized bench-top spectrophotometer solution for transmittance and liquid sample applications. Featuring an optimized d/0 geometry, ultra-precise repeatability, and multi-index measurement capabilities (color, haze, light transmittance), the instrument empowers enterprises to manage incoming raw materials and outgoing finished products in the most scientific, accurate, and professional manner.
