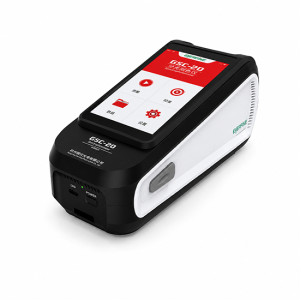

EVERFINE GSC-20 Handheld Spectrophotometer (Φ 8mm)

EVERFINE GSC-20 Handheld Spectrophotometer (Φ 8mm)

The EVERFINE GSC-20 spectrocolorimeter is a comprehensive solution that allows users to simultaneously measure color characteristics and surface reflectance with just a single button press. The device applies advanced optical structures, helping to quickly and accurately check appearance quality indicators without damaging the sample.

Key Features

Smart dual measurement system: Integrates both a precise color-analyzing spectrophotometric sensor and a surface gloss measurement system, optimizing testing time and product appearance evaluation.

Powerful parameter testing performance:

• Equipped with a standard Φ8mm measuring aperture, optimized for collecting data across various material surfaces.
• Provides color analysis according to multiple international color spaces and color difference formulas, combined with high-stability gloss evaluation.

Smart operation and connection system:

• Intuitive interface: Equipped with a color screen clearly displaying measurement parameters, supporting easy operation right on-site or on production lines.
• Memory and flexible connectivity: Supports large data storage on the device and modern communication ports to easily transfer data and export result reports to computers.

Durable materials and mobile structure: Sturdy ergonomic handheld design using high-grade materials, ensuring durability and stability when working in warehouses, workshops, or laboratories.

Energy-optimized operation mechanism: Uses a high-capacity rechargeable battery, delivering durable operating time for continuous survey and testing campaigns.

Technical Specifications:

Measurement geometry: 45°/0 (color) + 60° (gloss)

Main functions:

Color spaces: Lab, Lch, Lab(hunter), XYZ, Yxy, etc.

Color difference formulas: ∆E*ab, ∆E94, ∆E_CMC(l:c), ∆E00, ∆E(hunter), Metamerism Index (MI), WI (ISO, CIE, ASTM E313, Hunter, Berger, Taube, Stenby, Ganz), YI (ASTM E313 / D1925)

Reflectance range: 0 – 175%, resolution 0.01%

Repeatability: Chromaticity: standard deviation ∆E*ab < 0.02

Measuring aperture: Φ8 mm

Memory: 20,000 sets

Battery: High-quality 5,000 mAh Li-ion battery

Communication methods: USB, WiFi

Display: 4.2-inch backlit LCD screen

Practical Applications

Thanks to its integrated measurement capabilities for both color and gloss, the EVERFINE GSC-20 is widely applied across multiple industrial fields:

• Coatings & Automotive Industry: Simultaneously testing paint color and surface gloss of vehicle bodies and spare parts to ensure strict aesthetic standards.
• Plastics & Finishing Materials Industry: Evaluating surface quality of injection-molded plastic products, interior materials, and protective coatings.
• Laboratories & Quality Inspection: Serving research work and inspecting product appearance standards at R&D centers and manufacturing plants.
