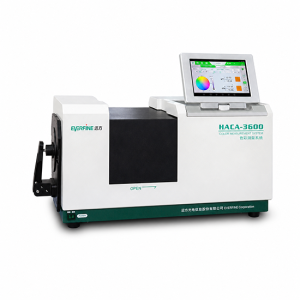

EVERFINE HACA-3600 Colorimeter

EVERFINE HACA-3600 Colorimeter

The EVERFINE HACA-3600 color meter is an advanced photometric solution belonging to the manufacturer’s high-end HACA series, designed to simultaneously analyze color parameters and the reflectance/transmittance of samples. The device utilizes exclusive spectrophotometric technology combined with a high-stability light source, helping to quickly and accurately check color indicators without damaging the sample.

Key Features

Advanced optical system: Equipped with modern spectrophotometric measurement technologies to collect and analyze spectral reflectance and wavelengths of sample materials with high precision.

Powerful parameter testing performance:

• Provides color measurement, color deviation, and reflectance/transmittance capabilities with high repeatability and accuracy.
• Supports diverse international standard color spaces and color difference calculation formulas to intuitively evaluate product quality.

Smart operation and connection system:

• Integrates a user-friendly control interface, supporting specialized analysis software to easily extract, store, and manage measurement data.
• Optimizes measurement time, enhancing operational efficiency in R&D laboratories or quality inspection production lines (QA/QC).

Specialized device structure: Sturdy desktop workspace design, with an intelligently designed measuring chamber to make placing reflection or transmission samples convenient and stable.

Technical Specifications:

Measurement geometry:

Transmission: d/0 (diffuse light / 0-degree angle); Reflection: d/8 (diffuse light / 8-degree angle);

Measurement mode: SCI / SCE

Aperture:

Transmission: 20 mm

Reflection: LAV: 28 mm; MAV: 11 mm; SAV: 5 x 7 mm

Various measuring apertures can be selected for different sample sizes, and corresponding aperture sizes can be identified automatically.

Wavelength range: 380 – 780 nm (special range customizable)

Wavelength interval: Up to 0.1 nm

Reflectance range: 0 – 200%

Repeatability: Standard deviation less than 0.05%

Accessories: Standard white board, zero calibration box.

Practical Applications

Thanks to its high precision and comprehensive analysis capabilities, the EVERFINE HACA-3600 is widely applied across multiple industrial fields:

• Coatings & Plastics Industry: Testing color uniformity, evaluating color deviation of paint films, plastic granules, and injection-molded materials.
• Textile & Fashion Industry: Measuring and inspecting the color of yarn, fabric, and finished textile products according to international commercial standards.
• Laboratories & Materials Research: Serving product research and development, and strict raw material quality inspections at inspection centers.
