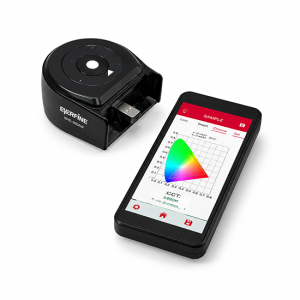

EVERFINE SPIC-300AW Spectroradiometer (380 nm ~ 760 nm)

EVERFINE SPIC-300AW Spectroradiometer (380 nm ~ 760 nm)

The EVERFINE SPIC-300AW radiation spectrophotometer is a comprehensive photometric solution designed to simultaneously integrate spectrum measurement, illuminance measurement, color parameters, and color rendering. The device operates across a standard wavelength range from 380 nm to 760 nm, helping to quickly and accurately check the characteristics of light sources without damaging the sample.

Key Features

Comprehensive optical measurement system: The device is equipped with a high-sensitivity sensor featuring an 8 mm diameter optical reception window, integrating precise angle correction technology and stray light control (stray light less than or equal to 0.3%).

Powerful parameter testing performance:

• Wide illuminance measuring range from 1 lx to 100,000 lx, supporting correlated color temperature (CCT) measurement from 1,000 K to 100,000 K.
• High color coordinate accuracy (error approx. +/-0.001) alongside detailed analysis capabilities of the color rendering index (CRI: Ra and Ri parameters from R1 to R15).

Smart operation and interface system:

• Large touch screen: Equipped with a modern 5-inch capacitive touch screen, supporting intuitive one-touch operation and real-time data reading.
• Large memory and wireless connectivity: Integrates 6 GB of internal memory, supporting diverse modern communication ports including USB Type-C, Bluetooth, and WiFi for easy data transfer and software connectivity.

Durable materials and mobile structure: Compact handheld design (weight approx. 320 g including battery), optimized for mobile fieldwork operations, office inspections, or laboratory testing.

Energy-optimized operation mechanism: Uses a high-capacity Lithium-ion rechargeable battery (3.7V), supporting continuous operating time that well meets practical survey and testing requirements.

Technical Specifications:

Wavelength range: 380 nm ~ 760 nm

SBCT: None

Receptor window: Phi 8 mm

Wavelength accuracy: +/-0.5 nm

Brightness accuracy: +/- (4% of reading + 1 digit)

Stray light: <= 0.3%

Integration time range: 0.1 ms ~ 5,000 ms

Brightness range: 1 lx ~ 100k lx

CCT: 1,000K ~ 100,000K

Chromaticity coordinate accuracy: +/-0.001

CRI: Ra; Ri (i = 1 ~ 14) (R15)

Power supply: Rechargeable Lithium battery (3.7V), continuous operation for 4 hours

Communication methods: USB, Bluetooth, WIFI

Memory: 6 GB

Weight: 320 g (including battery)

Practical Applications

Thanks to its precise spectral and light color parameter analysis capabilities, the EVERFINE SPIC-300AW is widely applied across multiple fields:

• Lighting Industry & Lamp Manufacturing: Testing luminous quality, evaluating color rendering index (CRI), and color temperature (CCT) of LED systems and commercial lamps.
• Space & Architecture Inspection: Evaluating interior lighting standards for offices, schools, museums, or art exhibition spaces.
• Laboratories & Optical Research: Serving measurement work, analyzing radiation characteristics, and inspecting strict optical standards.
