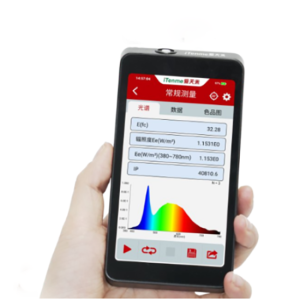

EVERFINE SPIC-301 Spectral Irradiance Meter (380 nm ~ 780 nm)

EVERFINE SPIC-301 Spectral Irradiance Meter (380 nm ~ 780 nm)

The EVERFINE SPIC-301 radiation spectrophotometer is a top-tier light analysis solution designed to simultaneously measure multiple in-depth parameters such as spectral distribution, correlated color temperature (CCT), color rendering index (CRI), color coordinates, and radiation intensity. The device operates across a wide standard wavelength range from 380 nm to 780 nm, helping to quickly and accurately check the characteristics of all modern light sources without damaging the sample.

Key Features

High-performance optical system: The device is equipped with a high-sensitivity sensor combined with advanced spectral grating technology, ensuring data collection capability with sharp spectral resolution, high accuracy, and optimal stray light suppression.

Powerful parameter testing performance:

• Wide illuminance measuring range from low light levels to high-intensity environments, supporting correlated color temperature measurement from 1,000 K to 100,000 K.
• Superior color coordinate accuracy, supporting detailed analysis of the color rendering index (CRI: Ra and Ri parameters from R1 to R15) along with international color parameter systems.

Smart operation and interface system:

• Intuitive display screen: Equipped with a modern large color screen, intuitively displaying spectral distribution graphs and measurement parameters in real-time.
• Large memory and flexible connectivity: Integrates a large-capacity internal memory to store measurement results, supporting diverse modern communication ports to easily transfer data and connect dedicated PC software.

Durable materials and mobile structure: Handheld design or compact specialized structure, optimized for mobile fieldwork operations, office inspections, or laboratory use.

Energy-optimized operation mechanism: Uses a high-capacity rechargeable battery, ensuring continuous and durable operating time throughout extended survey and testing campaigns.

Technical Specifications:

Wavelength range: 380 nm ~ 780 nm

Wavelength accuracy: +/-0.5 nm

Cosine correction accuracy: 3%

Illuminance range: 10 lx ~ 100 klx

Illuminance accuracy: +/- (4% of reading + 1 digit)

Stray light: 0.30%

Correlated Color Temperature (CCT): 1,000 K ~ 100,000 K

Position indicator range: 0 ~ 90°

Dimensions: 144 mm x 74 mm x 18 mm

Weight: 220 g

Battery life: 18 hours

Practical Applications

Thanks to its precise laboratory-grade spectral and light color parameter analysis capabilities, the EVERFINE SPIC-301 is widely applied across multiple fields:

• Lighting Industry & Lamp Manufacturing: Testing luminous quality, evaluating color rendering index (CRI), and color temperature (CCT) of LED, OLED systems, and commercial lamps.
• Space & Architecture Inspection: Evaluating interior lighting standards for offices, schools, museums, or art exhibition spaces according to international standards.
• Laboratories & Optical Research: Serving measurement work, analyzing radiation characteristics, and inspecting strict optical standards at research institutes and testing centers.
