Huicolor CL300 Illuminance Color Meter

Huicolor CL300 Illuminance Color Meter

In fields such as lighting equipment manufacturing, interior design, high-tech agriculture (greenhouse lighting), or electronic display inspection, controlling light intensity and color with absolute precision is vital. The Huicolor CL300 illuminance color meter is an advanced handheld device that comprehensively integrates illuminance (Lux) measurement and light color analysis. It stands as the optimal solution to help businesses standardize light quality according to international specifications.

The Huicolor CL300 is a premium handheld illuminance colorimeter designed to measure the characteristic parameters of light sources. The device features a high-sensitivity spectral sensor probe, enabling precise capture and analysis of light emitted from LEDs, fluorescent lamps, OLEDs, and computer monitors, as well as natural daylight.

With its compact design, intuitive control interface, and clear color display, the CL300 allows engineers and technicians to perform highly accurate measurements directly on-site or inside the laboratory.

Key Features of the Huicolor CL300

💡 Multi-functional Measurement: Illuminance and Light Color

Going far beyond conventional lux meters that only measure light intensity, the Huicolor CL300 performs in-depth analysis on the color metrics of light, including:

• Illuminance: Accurately measures in Lux or Foot-candle (fc) units.
• Correlated Color Temperature (CCT): Identifies whether the light belongs to warm (yellow), neutral, or cool (white) tones in Kelvin (K).
• Color Coordinates: Precisely displays the color position on standard CIE 1931 (x, y) and CIE 1976 (u’, v’) color spaces.

💡 Precise Color Rendering Index (CRI) Evaluation

The device is capable of analyzing the Color Rendering Index (CRI, Ra, from R1 to R15). This is a critical metric that determines how realistically an object’s colors are revealed under a given light source, making it absolute essential for high-quality LED testing.

💡 Flexible Probe with Smart Design

The sensor probe of the Huicolor CL300 can be detached or flexibly rotated (depending on the specific version), allowing users to easily insert the measuring head into tight spaces or difficult illumination angles while still comfortably reading results on the display screen.

💡 Large Data Storage and Effortless PC Connection

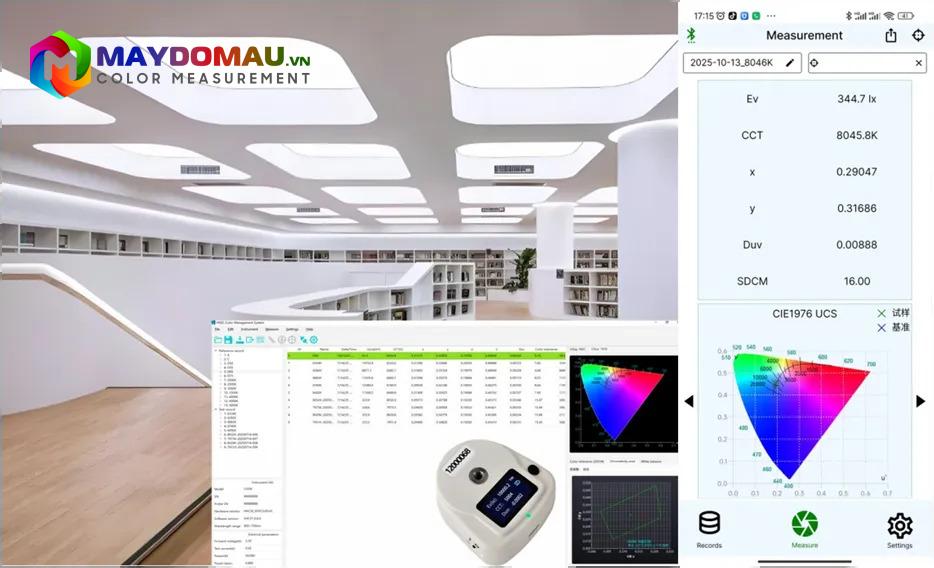

The instrument supports storing multiple measurement data groups. Through the built-in USB port, users can seamlessly transfer data to specialized PC software to analyze light spectrum charts and generate professional inspection reports.

Technical Specifications

Practical Applications of the Huicolor CL300

Thanks to its comprehensive light source measurement capabilities, the Huicolor CL300 is widely implemented in:

• LED Manufacturing & Inspection: Checking color temperature and illuminance uniformity across LED batches before factory release.
• Lighting Design & Commissioning: Measuring and approving lighting systems for offices, commercial centers, and broadcasting studios to ensure illuminance satisfies occupational safety and aesthetic requirements.
• High-Tech Agriculture: Inspecting the light intensity and spectrum of specialized grow lights used inside greenhouses and tissue culture rooms.
• Facility Management & Building Maintenance: Periodic inspection of lighting systems in public spaces, schools, and hospitals to target and replace degraded bulbs.

Why the Huicolor CL300 is Your Optimal Choice

• Industry-Standard Accuracy: Eliminates guesswork by delivering visual light data in concrete numerical values, making it easier for businesses to work with demanding partners.
• Highly Portable: A compact, pocket-sized device that is easy to carry to construction sites or field surveys for real-world customer consultations.
• Optimized Return on Investment: Integrates both Lux and light color measurement into a single instrument at an accessible price point, proving far more economical than purchasing two separate devices.
