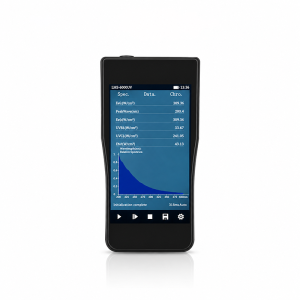

Lisun LMS-6000 Handheld Light Spectrophotometer (380~780nm)

Lisun LMS-6000 Handheld Light Spectrophotometer (380~780nm)

The Lisun LMS-6000 handheld light spectrophotometer is an optimal mobile solution designed to comprehensively measure and evaluate optical parameters of light sources across a wide wavelength range from 380nm to 780nm. The device operates based on advanced spectroscopic analysis methods, helping to thoroughly test lighting indicators flexibly in the field without damaging or affecting the sample.

LMS-6000: Illuminance (lux), E (Fc), Ee (W/m2), Tc (K), Correlated color temperature Duv (CCT), Color coordinates, CRI, Purity, Peak wavelength, Dominant wavelength, Center wavelength, Center wavelength, Total color difference, Brightness difference, Red-Green, Yellow-Green, CCT difference, SDCM chart, Spectrum chart.

Technical Specifications:

• Wavelength range: 380 ~ 780nm

• Spectral resolution: +/- 0.2nm, Reproducibility: +/- 0.5nm

• Chromaticity coordinate accuracy (x, y): +/- 0.005

• Correlated color temperature (CCT): 1,000K ~ 100,000K (+/- 3%)

• Illuminance range: 5 ~ 200,000lx

• LCD screen: 5-inch high-definition IPS capacitive touch screen with a resolution up to 480 x 854

• Equipped with a 4000mAh rechargeable Li-ion battery, continuous working time of 20 hours

• Dimensions: 135mm x 80mm x 23mm

• Connects to a PC via USB, English version software compatible with Win7, Win8, or Win10

Outstanding Features

Comprehensive optical measurement system: The device is equipped with high-sensitivity sensors and dedicated processing circuits in the standard 380-780nm wavelength range, ensuring absolute accurate collection and analysis of light components throughout the testing process.

Powerful parameter testing performance: Applying advanced spectroscopic signal processing technology, the system has the ability to quickly measure optical quantities (such as color temperature, color rendering index, luminous flux, spectral distribution), achieving extremely high evaluation efficiency for light source quality before bringing products to market or practical application.

Intelligent operation and connection system:

• Flexible device connection interface: Convenient handheld design, supporting smooth connection and data synchronization with a computer or analytical device, ensuring the stability of measurement signals.
• Combined data processing system: Integrates an intuitive display screen and specialized software supporting recording, automatic calculation of lighting parameters, and quickly exporting test result reports.

Manufacturing materials and durable structure: The entire machine housing and optical components use high-grade anti-interference and light impact-resistant materials, helping to maintain stability in field and laboratory working environments, protecting equipment safety, and ensuring long-term accuracy.

Advanced safety operation mechanism: The system is designed according to modern electronic engineering standards, integrating circuit protection and error warning features, ensuring stable operation during continuous testing procedures.

Practical Applications

In addition to its main function of measuring and analyzing spectroscopy for light sources, the Lisun LMS-6000 is also widely applied in many other industries due to its high flexibility:

• Lighting & LED Industry: Testing and evaluating light quality, color temperature, and color rendering index of LED bulbs, domestic and industrial lighting equipment right at production workshops or construction sites.
• Field Testing & Installation Industry: Supporting engineers in quickly measuring spectrum, chromaticity, and lighting indicators at architectural, street, and factory lighting projects.
• Laboratories & Quality Inspection: Serving research work, technical measurement, and periodic testing of optical standards in specialized inspection centers.
