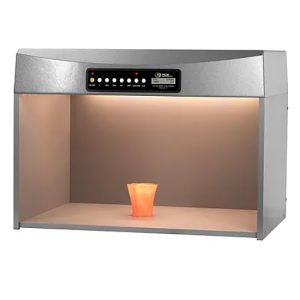

PCE CIC 11-LED Color Viewing Box

PCE CIC 11-LED Color Viewing Box

The PCE CIC 11-LED color viewing box is an optimal solution designed to visually evaluate color consistency and characteristics of products under various standard lighting conditions. The device operates based on methods accurately simulating commercial and natural light sources, helping to quickly and visually check color indicators without damaging the sample.

Outstanding Features

Comprehensive optical lighting system: The device supports six built-in standard light sources including A/F, D65, TL84/F11, UV, CWF, and TL83/U30, ensuring accurate reproduction of practical lighting environments during testing.

Powerful parameter testing performance: Allows users to flexibly switch between independent light sources via buttons or combine multiple types of light simultaneously (mixed light) by pressing corresponding buttons on the control panel simultaneously, delivering optimal evaluation of color shifting phenomena.

Intelligent operation and connection system:

• Convenient control interface: Intuitive front-panel push-button control board combined with a short startup time makes testing operations quick and efficient.
• Operating time tracking system: Integrates an hour counter for each light source type to help managers closely monitor usage time for timely lamp replacement, ensuring the accuracy of standard lighting.

Manufacturing materials and durable structure: Spacious interior observation chamber, easy-to-clean surface design, sturdy frame meeting IP20 protection standards for effective use in laboratories and factories.

International technical standards: The device is strictly designed in compliance with popular international standards such as ASTM D1729, ISO 3664, DIN, ANSI, and BSI.

Practical Applications

Thanks to its ability to simulate diverse lighting environments to test color discrepancies, the PCE CIC 11-LED is widely applied in many industries:

• Paint & Plastics Industry: Testing color uniformity and evaluating discoloration phenomena of paint batches, plastic films, and construction materials under different light sources.
• Textile & Fashion Industry: Accurately evaluating color matching between fabric raw materials and finished products when flexibly transitioning between lighting environments.
• Laboratories & Printing Industry: Serving research work, quality inspection of packaging, printed materials, and strict optical standards in industrial inspection centers.

Technical Specifications

Box light: A / F

Artificial daylight: D65

Fluorescent light: TL84 / F11

Ultraviolet: UV

Office / store / storage room light: CWF

Dimensions: 695 x 552 x 502 mm

Standards: ASTM D1729; ISO3664; DIN; ANSI; BSI

Delivery scope includes

1 x PCE-CIC 11-LED

1 x User manual
