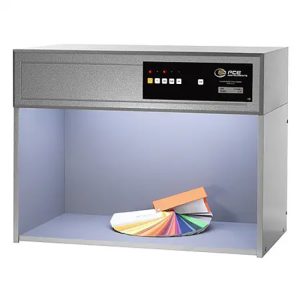

PCE CIC 5-LED Color Viewing Box (D65; TL84; A, F)

PCE CIC 5-LED Color Viewing Box (D65; TL84; A, F)

The PCE CIC 5-LED color viewing box is an optimal solution designed to visually evaluate the color consistency and characteristics of products under standard light sources including D65, TL84, A, and F. The device operates based on methods simulating various commercial and natural light sources, helping to quickly and visually check color indicators without damaging the sample.

Outstanding Features

Comprehensive optical lighting system: The device supports built-in standard light sources including D65, TL84, A, and F, ensuring accurate reproduction of practical lighting environments during testing.

Powerful parameter testing performance: Allows users to flexibly switch between independent light sources via buttons on the control panel, providing reliable evaluation of color shifting phenomena under different light sources.

Intelligent operation and connection system:

• Convenient control interface: Intuitive front-panel push-button control board combined with a short startup time makes testing operations quick and efficient.
• Operating time tracking system: Integrates an hour counter to help managers closely monitor the usage time of lamps for timely replacement, ensuring the accuracy of standard lighting.

Manufacturing materials and durable structure: Spacious interior observation chamber, easy-to-clean surface design, sturdy frame meeting industrial durability standards for effective use in laboratories and factories.

International technical standards: The device is strictly designed in compliance with popular international standards in the field of visual color evaluation.

Practical Applications

Thanks to its ability to simulate diverse lighting environments to test color discrepancies, the PCE-CIC 5-LED is widely applied in many industries:

• Paint & Plastics Industry: Testing color uniformity and evaluating discoloration phenomena of paint batches, plastic films, and construction materials under different light sources.
• Textile & Fashion Industry: Accurately evaluating color matching between fabric raw materials and finished products when flexibly transitioning between lighting environments.
• Laboratories & Printing Industry: Serving research work, quality inspection of packaging, printed materials, and strict optical standards in industrial inspection centers.

Technical Specifications:

Daylight / color temperature: D65 / approx. 6500 K

Retail store light / color temperature: TL84 / approx. 4000 K

Home light / color temperature: A; F / approx. 2700 K

Ultraviolet / wavelength: UV / 365 nm

External dimensions: 710 x 405 x 570 mm

Internal dimensions: 680 x 385 x 355 mm

Power supply: 230 V AC / 50 Hz

Standards: ASTM D 1729, ISO 3664

Delivery scope includes:

1 x PCE-CIC 5-LED Color Viewing Box

1 x User manual
