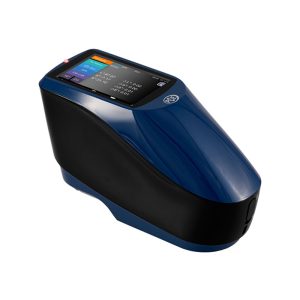

PCE CSM 20 Colorimeter

PCE CSM 20 Colorimeter

The PCE CSM 20 spectrophotometer colorimeter is an optimal solution designed to analyze and comprehensively evaluate color parameters based on international standard color spaces such as CIE Lab, XYZ, Yxy, LCh, CIE LUV, and Hunter LAB. The device operates based on standard 8°/d photometric geometry combined with an integrating sphere, supporting both SCI and SCE reflectance modes, helping to perform quick and accurate color tests without affecting the sample.

Outstanding Features

Comprehensive optical measurement system: The device is equipped with a 256-pixel CMOS image sensor combined with a 4-color LED system (including UV) and a concave diffraction grating, ensuring absolute accurate collection and analysis of spectral reflectance in the 400nm to 700nm range.

Powerful parameter testing performance: Applying advanced signal processing technology with extremely high repeatability (standard deviation within color difference less than or equal to 0.06), supporting diverse color difference calculation formulas (Δ E) and intuitive PASS/FAIL evaluation.

Intelligent operation and connection system:

• Camera-based sample positioning: Integrates a camera to support precise identification of the exact measurement spot on small samples easily.
• Flexible device connection interface: Possesses a sharp 3.5-inch TFT capacitive touch screen combined with an intuitive interface, making white/black calibration and parameter setup easy right at the field.

Combined data processing system: Allows for mass storage directly on the machine with a large memory storing up to 2,000 reference samples and 20,000 measured samples, supporting PC connection via USB port with specialized software to export quality management reports.

Manufacturing materials and durable structure: Sturdy handheld ergonomic design using high-grade materials, helping to maintain stability in laboratory and production workshop working environments.

Energy-optimized operation mechanism: Uses a high-capacity Lithium-ion rechargeable battery, with a light source lifespan of over 3 million measurements.

Technical Specifications:

Measurement geometry: 8°/d

Integrating sphere size: 48 mm

Light source: LED system, UV lamp

Spectral operation: Concave grating

Sensor: 256-pixel CMOS image sensor

Wavelength range: 400 … 700 nm

Wavelength interval: 10 nm

Reflectance range: 0 … 200%

Measuring aperture: Single board: 8 mm (0.3″) / 10 mm (0.4″)

Reflectance component: SCI, SCE

Color spaces: CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB

Color difference formulas: Δ E*ab, Δ E*uv, Δ E*94, Δ E*cmc (2:1), Δ E*cmc (1:1), Δ E*00, Δ E(Hunter)

Light type: D65, A, C, D50

Observation angle: 2° / 10°

Data display: Spectral values, color value samples, color difference values/graphs, success/fail results, color balance

Measurement time: 2.6 seconds

Repeatability: MAV/SCI: Δ E* <= 0.06

Instrument error: MAV/SCI: Δ E* <= 0.4

Measurement mode: Single measurement, average measurement

Tracking process: Finding measurement points by camera

Power supply: Integrated Li-ion battery

Dimensions: 184 x 77 x 105 mm / 7.2 x 3.0 x 4.1″ (L x W x H)

Weight: 600 g / 1.3 lbs

Lamp life: 5 years / more than 3 million measurements

Display: 3.5-inch color TFT LCD screen, capacitive touch screen

Data interface: USB

Data storage: 2000 standards, 20,000 samples

Language: English, Chinese

Operating conditions: 0 … 40°C / 32 … 104°F; 0 … 85% relative humidity (non-condensing)

Storage conditions: -20 … 50°C / -4 … 122°F; 0 … 85% relative humidity (non-condensing)

Delivery scope includes

1 x PCE-CSM 20

1 x Li-Ion battery (installed)

1 x Calibration standard (white and black)

1 x AC charging adapter

1 x Dust cover

1 x USB cable

1 x Factory calibration certificate

1 x CD-Rom with software

1 x Cleaning cloth

1 x User manual

Practical Applications

Thanks to its in-depth and flexible color control capability, the PCE-CSM 20 is widely applied in many industries:

• Paint & Plastics Industry: Testing color uniformity of paint batches, plastic films, electronic components, and construction materials.
• Textile & Fashion Industry: Evaluating color fastness, color deviation between fabric raw materials and finished products according to digital technical standards.
• Laboratories & Quality Inspection: Serving R&D research, periodic testing of strict color standards in industrial testing centers.
