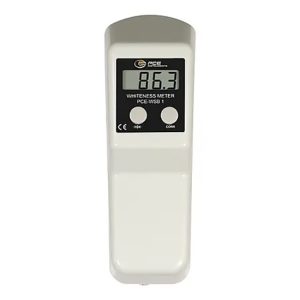

PCE WSB 1 Whiteness Meter

PCE WSB 1 Whiteness Meter

The PCE WSB 1 whiteness meter is an optimal solution designed to determine whiteness levels through diffuse light reflection intensity based on standard measurement scales (typically referencing blue light whiteness Wb = R457). The device operates based on photometric methods compliant with international standards such as ISO 2470 and ISO 3688, helping to perform quick and accurate tests without damaging the sample.

Technical Specifications

Measuring range: 0… 100.0 (displays values up to 199.9)

Whiteness formula: Blue light whiteness; Wb = R457

Light source: Approx. A; simulates D65

Measurement light condition: 45/0

Display resolution: 0.1

Display accuracy: +/- 0.1

Standards: ISO 2470; ISO 3688

Display: Liquid Crystal Display (LCD)

Measuring aperture diameter: Diameter 15 mm / 0.6″

Power supply: 5 x AA 1.5V batteries

Operating conditions: +5 … +35°C / +41 … +95°F; <85% RH

Dimensions: Approx. 235 x 75 x 65 mm / 9.25 x 2.9 x 2.5″

Weight: Approx. 500 g / 1.2 lbs

Delivery scope includes

1 x PCE-WSB 1

1 x Brightness calibration tile

1 x Black calibration tile

1 x White calibration tile

2 x Power inspection boxes

1 x User manual

1 x Carrying case

Outstanding Features

Comprehensive optical measurement system: The device is equipped with sensors and a standard illumination system (simulating light sources A and D65) with 45/0 geometry, ensuring accurate collection and analysis of light reflection levels within the 0 to 100.0 measuring range (displaying values up to 199.9).

Powerful parameter testing performance: Applying advanced signal processing technology with 0.1 resolution and high repeatability (+/- 0.1), providing highly reliable surface material quality evaluation.

Intelligent operation and connection system:

• Convenient handheld design: Compact shape, lightweight, and a user-friendly button interface, making measurements in the field or laboratory easy.
• Calibration kit included: Supports full black, white, and brightness standards, allowing users to perform DIY calibration quickly to maintain long-term accuracy.

Manufacturing materials and durable structure: The machine housing is made of high-grade plastic with a sturdy ergonomic design, providing high resistance in industrial production environments and laboratories.

Energy-optimized operation mechanism: Powered by standard AA batteries for easy replacement, integrated with power-saving technology to minimize work interruptions.

Practical Applications

Thanks to its flexible measurement capability on flat and powder surfaces, the PCE WSB 1 is widely applied in various industrial sectors:

• Paper & Cellulose Industry: Checking brightness and whiteness of paper, cardboard, and pulp according to ISO standards.
• Food & Pharmaceutical/Cosmetic Industry: Measuring the whiteness of flour, salt, sugar, starch, talc, laundry detergent, and personal care products.
• Construction Materials & Coatings Industry: Testing surface quality of paints, ceramics, cement, wall putty, plastics, and other non-metallic materials.
