Elcometer J480B-6 Glossmeter (60°)

Elcometer J480B-6 (60°) Glossmeter

Elcometer J480B-6 (60°) Glossmeter: Accurate and Economical Surface Inspection Solution

In the quality management (QA/QC) processes of the paint, plastics, packaging, furniture, and automotive industries, maintaining surface gloss uniformity is a decisive factor for product aesthetics. The Elcometer J480B-6 (60° Angle) glossmeter is a digital device within the Basic range, delivering UK-standard precise gloss measurement at the most optimized investment cost for businesses.

Key Features of Elcometer J480B-6 (60°)

The J480B-6 model belongs to the renowned Elcometer 480 Series generation, with advanced batching features streamlined to focus entirely on fast measurement performance and absolute mechanical accuracy:

Industry Standard 60° Measurement Angle: The 60° angle is the universal measurement angle, applied to inspect the gloss of most standard surfaces (gloss range from 10 to 70 GU). The device perfectly complies with strict international standards such as ISO 2813, ASTM D523, and DIN 67530.

“Basic” Range Gauge (The letter ‘B’) for Streamlined Operation: The gauge focuses on displaying immediate measurement data intuitively. The device memory stores the last 10 readings on the screen for quick on-site comparison by technicians, making operation as simple as “turn on and measure” without complex configurations.

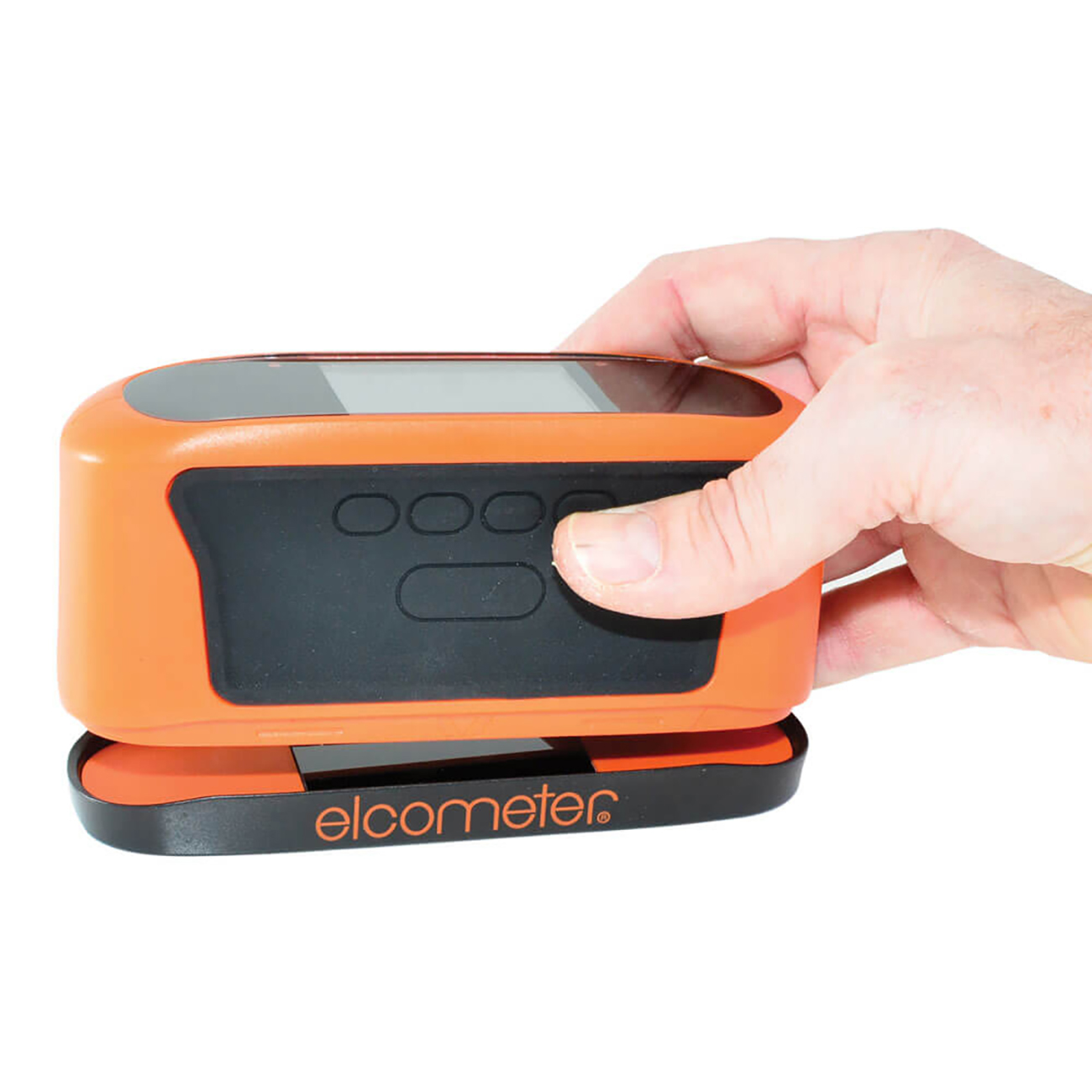

Incredible Measurement Speed & High Stability: Response time for results is under 0.5 seconds. The gauge can automatically detect the included Calibration Tile, making the calibration process fully automatic and 100% accurate.

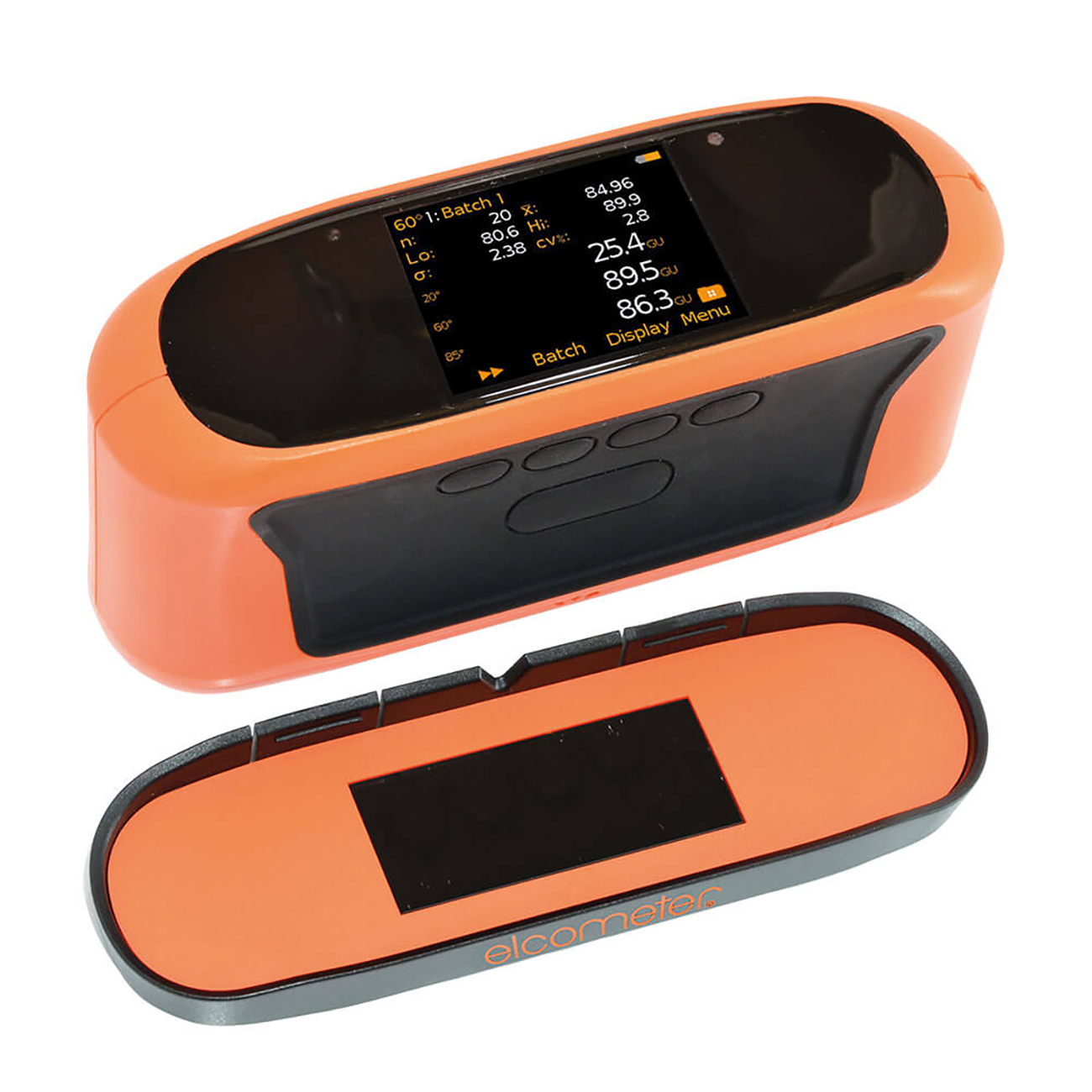

Durable Industrial Design, Sharp Screen: The rugged outer casing provides maximum circuit board protection in workshop environments. The sharp color display features an automatic backlight, making it easy to read results under any lighting conditions.

Detailed Technical Specifications

Measurement Angle: 60°
Measurement Unit: GU
Data Output: USB direct reading
Display Orientation: Automatic, 0°, 180°
Display: 2.4 inch QVGA, 320 x 240 pixel resolution
Power Supply: USB (via PC) or 2 x AA batteries
Measurement Area: 60°: 8 x 16mm
Measurement Range: 60°: 0 – 1,000GU
Repeatability: 60°: 0 – 1,000GU
Resolution:
+ Gloss: 0.1 GU (0 – 100GU); 1 GU (>100GU)
+ % Reflectance: 0.01% (0 – 10GU); 0.1% (10 – 100GU)
+ Haze: 0.1 HU (0 – 100HU); 1 HU (>100HU)
Operating Temperature: -10°C ~ 50°C, Humidity: 0 – 85%RH
Dimensions (H x W x D): 68 x 155 x 50mm
Weight: 534 g (including batteries)
Packing List: 480 Main unit, integrated calibration tile, calibration certificate for gauge and tile, 2 x AA batteries, wrist strap, operating instructions, plastic carrying case.

Typical Real-World Applications

Paint & Coatings Industry: Checking the surface gloss of coating films on wood, metal, and powder-coated partitions.

Plastics & Composite Industry: Assessing the gloss of plastic molded components, household appliances, and automotive interior parts.

Printing & Packaging: Measuring the gloss level of printing inks, glossy films, and matte finishes on boxes and labels.

Metal Surface Treatment: Evaluating the surface gloss of anodized aluminum profiles, satin/matte stainless steel, or mechanically polished components.
