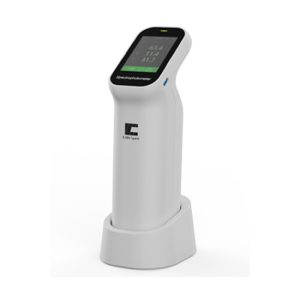

CHN SPEC CS-520 Spectrophotometer

CHN SPEC CS-520 Spectrophotometer

The CHN SPEC CS-520 Spectrophotometer is an outstanding upgraded version in the CHN SPEC portable color measurement device ecosystem. Not only does it possess high-precision optical measurement hardware, but the CS-520 also integrates wireless connectivity technology and automation features, helping to optimize user experience and improve work efficiency in quality control (QC) processes.

Outstanding Features

• International standard optical system (D/8, SCI+SCE): The device uses a diffuse illumination geometric structure with an 8-degree viewing angle (D/8). The simultaneous measurement mode of SCI (Specular Component Included) and SCE (Specular Component Excluded) helps users accurately evaluate the original color while recognizing the influence of surface gloss or roughness on color perception.
• Smart automatic calibration: The CS-520 is equipped with a magnetic calibration base (built-in white calibration tile). As soon as it is turned on or placed back on the base, the device automatically performs the calibration process without requiring the user to manually perform complex steps.
• Data synchronization via Bluetooth & Mobile App: The device supports seamless Bluetooth connection with smartphones (via a dedicated App). Users can easily store and share color data, create QC reports remotely, and access a massive color database to search for equivalent standard color codes.
• Stable full-spectrum CLED light source: Similar to high-end models, the device uses a full-spectrum balanced LED (CLED) band spanning the visible light range (400-700nm). This light source ensures outstanding accuracy when analyzing complex color gamuts and has a very long operating lifespan.
• High repeatability and reliability: The powerful sensor system helps the CS-520 achieve excellent repeatability at dE*ab ≤ 0.04, ensuring absolute data consistency when performing continuous measurements on the production line or among different batches.

Technical Specifications:

Measurement Geometry: d/8, SCI, SCE

Light Source: LED (Full-band balanced LED light source)

Color Spaces and Indices: Reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE-Luv, XYZ, Yxy, RGB, Color difference (ΔE*ab, ΔE*cmc, ΔE*94, ΔE*00), WI (ASTM E313-00, ASTM E313-73, CIE/ISO, AATCC, Hunter, Taube Berger Stensby), YI (ASTM D1925, ASTM E313-00, ASTM E313-73), Blackness (My, dM), Color Fastness, Tint (ASTM E313-00), Color Density CMYK (A, T, E, M), Milm, Munsell, Opacity, Color strength

Illuminants: A, B, C, D50, D55, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CWF, U30, U35, DLF, NBF, TL83, TL84

Observer Angles: 2°, 10°

Sensor: 256-pixel CMOS

Calibration: Automatic

Wavelength Interval: 10nm

Wavelength Range: 400-700nm

Reflectance Range: 0-200%

Reflectance Resolution: 0.01%

Integrating Sphere Size: 40mm

Repeatability:

Chromaticity Value:

Maximum: dE*ab < 0.04

Average: dE*ab < 0.03

Standard deviation within ΔE*ab 0.02 (when a white tile is measured 30 times at 5-second intervals)

Reflectance: Standard deviation < 0.1%

Aperture:

LAV: Φ8mm/Φ11mm

MAV: Φ4mm/Φ6mm

MINI: 1*3mm

Inter-instrument Agreement: ΔE*ab ＜ 0.2 (BCRA Series II, average measurement of 12 tiles, MAV/SCI)

Measurement Time: ≈ 1s

Storage: APP mass storage

Battery: Rechargeable, 8000 continuous measurements, 3.7V/3000mAh

Screen: 2.4-inch color IPS

Interface: USB, Bluetooth

Light Source Lifespan: 10 years, 1 million measurements

Language: Chinese, English

Software: Android, iOS, Windows

Camera: Yes

Dimensions: L x W x H (77.8mm x 53.2mm x 185.7mm)

Weight: ≈ 300g

Practical Applications

Thanks to its flexible connectivity and high accuracy, the CHN SPEC CS-520 is a comprehensive solution for:

• Coatings and surface materials industry: Inspecting the color consistency of architectural paints, electrostatic powder coatings, and plated metal surfaces.
• Plastics and rubber industry: Controlling the color quality of plastic pellets, nylon films, household appliances, and injection-molded components.
• Textiles, footwear, and accessories: Evaluating color synchronization across fabric rolls, handcrafted leather surfaces, and fashion accessories.
• Printing, packaging, and furniture: Color measurement on laminated packaging, labels, paper, and industrial wood surfaces.
