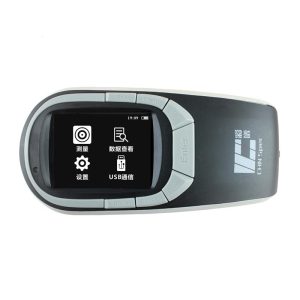

CHN SPEC CS-580 Handheld Spectrophotometer (d/8, 400~700nm, 2s)

CHN SPEC CS-580 Handheld Spectrophotometer (d/8, 400~700nm, 2s)

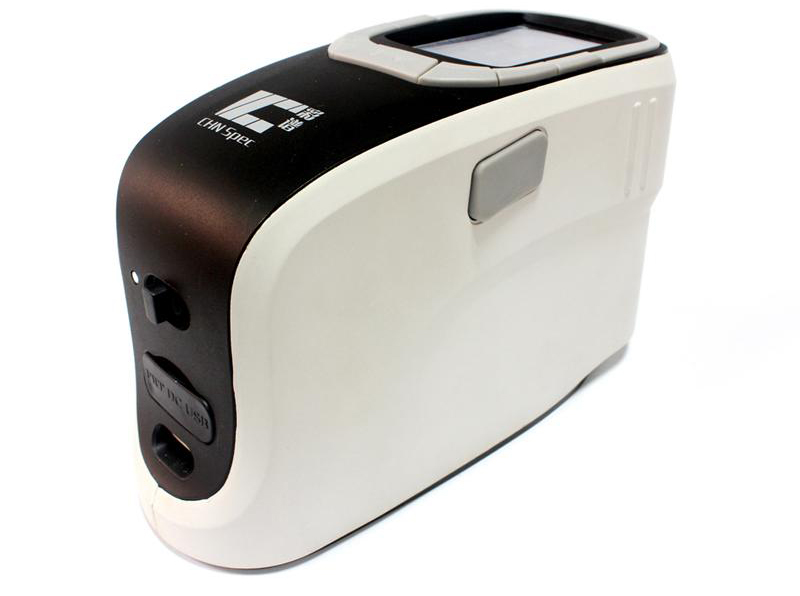

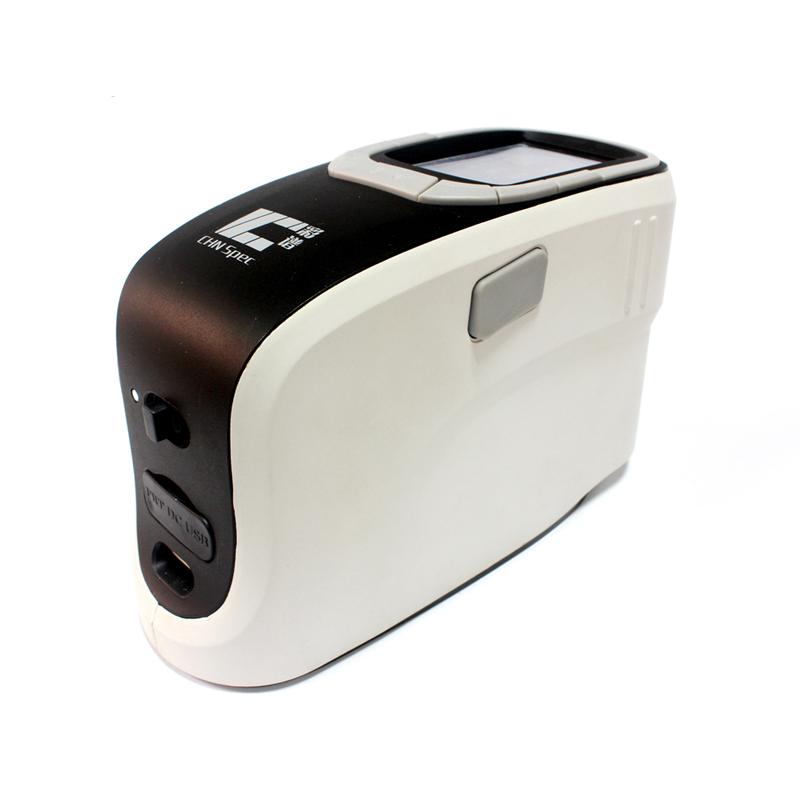

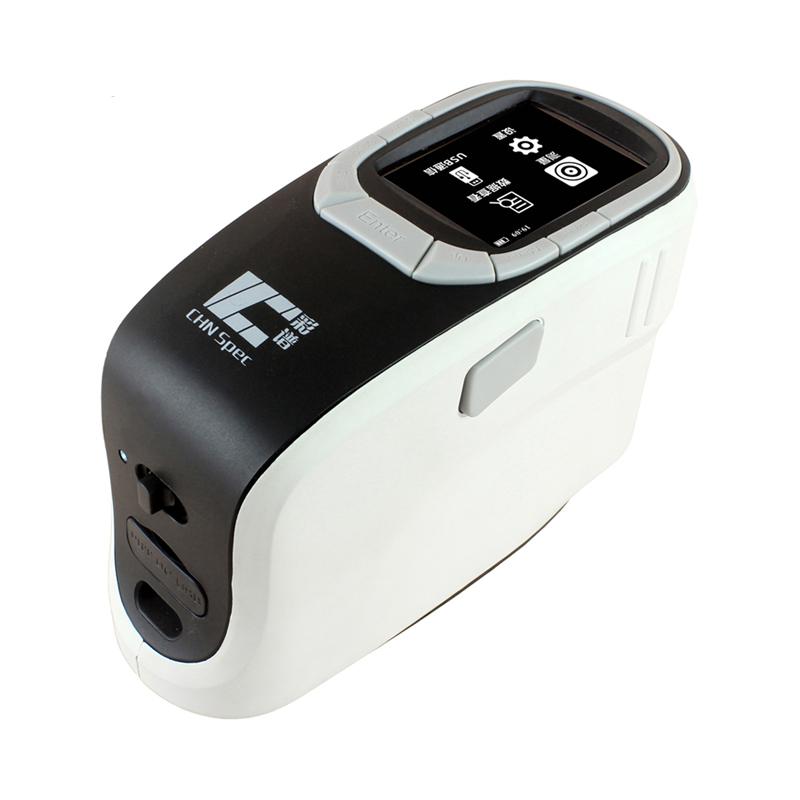

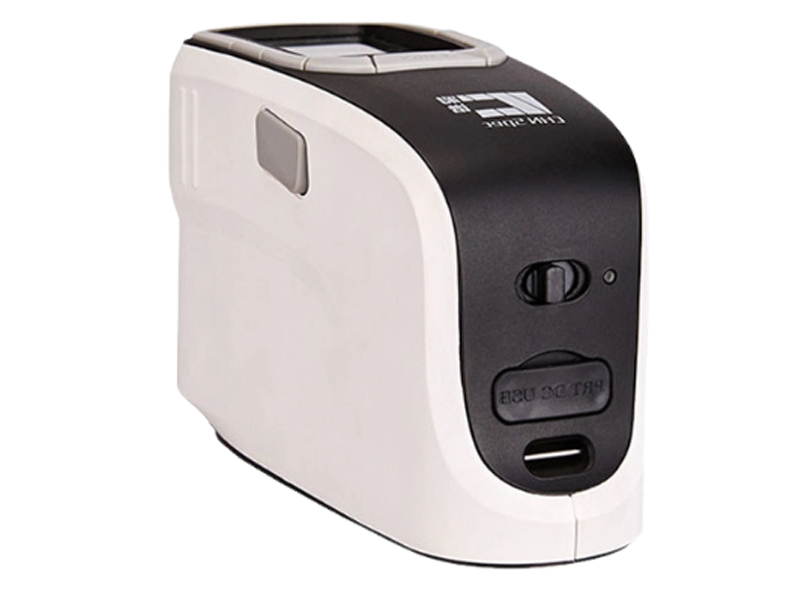

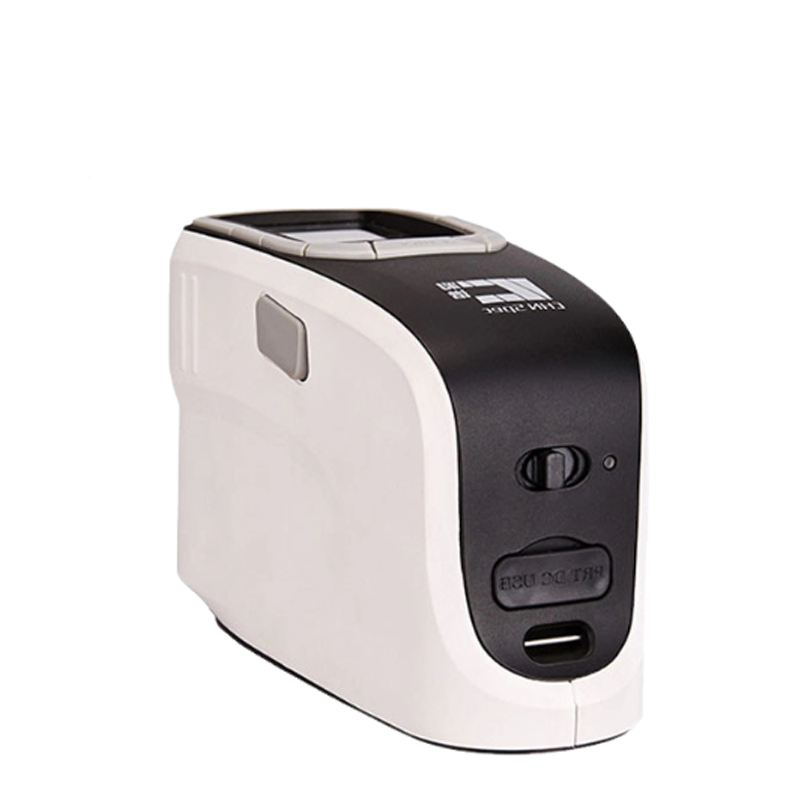

The CHN SPEC CS-580 Handheld Spectrophotometer is a specialized color measurement and comparison device manufactured by CHN SPEC. The device features a compact handheld design, integrating various advanced technologies to ensure accurate color measurement across a wide range of material surfaces.

Key Features

• Advanced optical system: The device uses D/8 measurement geometry (diffuse illumination, 8-degree viewing angle) along with the SCS optical engine (light splitting and integrating system) to collect data with high repeatability and accuracy.
• Simultaneous SCI and SCE measurement: The instrument can simultaneously measure both SCI (Specular Component Included – to measure the true color of the material) and SCE (Specular Component Excluded – to evaluate color similar to human visual perception).
• CLEDs light source: Utilizing a CLED light source (full-band balanced LED) avoids the spectral deficiency commonly found in standard white LEDs, ensuring highly accurate results.
• Automatic gloss compensation technology: Gloss significantly affects color perception. The device integrates automatic gloss compensation technology, maintaining accuracy on surfaces with varying roughness and gloss levels.
• Camera positioning: Equipped with a camera that helps users easily observe and accurately position the measurement area, avoiding positional deviations compared to aiming by eye.
• ETC (Every Test Calibration) technology: A built-in white calibration board inside the optical system allows the instrument to automatically calibrate during each measurement, ensuring high stability.
• Color QC management software: Comes with PC software that supports connection, color data management, storage, data retrieval, and report printing.

Practical Applications

With a standard spectral measurement range (400~700nm), rapid measurement time (2s), and mobility (handheld), the CHN SPEC CS-580 spectrophotometer is widely used for QC (quality control) and color matching in the following industries:

• Paint and surface coating industry.
• Textile, garment, footwear, and dyeing industry (fabric color matching).
• Plastic, packaging, and printing industry.
• Food processing, pharmaceutical, and medical industries.
• Building materials and ceramics manufacturing…

Technical Specifications:

Measurement Conditions: d/8, SCS optical engine, ETC, simultaneous SCI/SCE measurement

Integrating Sphere Size: Φ40mm, Alvan diffuse reflection surface coating

Illumination Light Source: CLED (full wavelength balanced LED light source)

Wavelength Range: 400-700nm

Measurement Range/Resolution: 0-200%, 0.0001

Observation Angle: 2°/10°

Measurement Light Source: A, C, D50, D55, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CWF, U30, DLF, NBF, TL83, TL84

Displayed Data: Reflectance curve/data, sample color value, color difference value/graph, PASS/FAIL result, color offset trend, color simulation, measurement area display, historical data color simulation, manual standard sample input, test report generation

Measurement Time: 2 seconds

Measurement Aperture: Φ10mm

Color Space: CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectance

Color Difference Formula: ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*94, ΔE*00

Other Colorimetric Indices: WI(ASTM E313-10, ASTM E313-73, CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby), YI(ASTM D1925, ASTM E313-00, ASTM E313-73), Tint(ASTM E313, CIE, Ganz),

Metamerism Index Milm, Staining Fastness, Color Fastness

Repeatability

Spectral Reflectance: standard deviation within 0.08%

Color Value: ΔE*ab<=0.03 (After calibration, standard deviation of 30 measurements on the white calibration board at 5-second intervals), Maximum: 0.05

Inter-instrument Agreement: ΔE*ab within 0.2 (BCRA II color tiles, average of 12 tiles)

Operating Temperature Range: 0~45℃, relative humidity 80% or below (at 35°C), non-condensing
