CHN SPEC DC-26CG Spectrophotometer (360 – 740 nm)

CHN SPEC DC-26CG Spectrophotometer (360 – 740 nm)

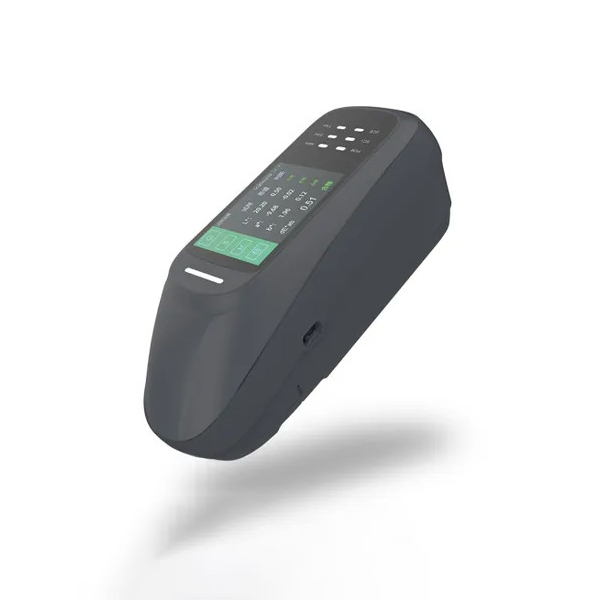

CHN SPEC DC-26CG Spectrophotometer (360 – 740 nm) is a high-end portable color measurement device that simultaneously integrates high-precision spectrophotometry and surface gloss measurement. Belonging to CHNSpec’s professional segment, this device meets stringent color management standards in modern industrial supply chains.

Technical Specifications:

Measurement geometry: 45/0 + gloss 60°

Repeatability*: dE*ab ≤ 0.02

Inter-instrument agreement**: dE*ab ≤ 0.25

Display resolution: 0.01

Measuring/illumination aperture: Φ8mm / 11mm

Measurement angle: 60°

Measurement spot size (mm): 60°: 11mm x 15mm

Measurement range: 60°: 0 – 400 GU

Division scale:

0 – 100: 0.1 GU

100: 1 GU

Measurement repeatability:

0 – 100 GU: 0.2 GU

100 – 400 GU: 0.2% GU

Measurement indices:

Spectral reflectance

CIE-Lab, CIE-LCh

Hunter L, a, b

CIE-Luv

XYZ, Yxy, RGB

Color difference (ΔE*ab, ΔE*cmc, ΔE*94, ΔE*00)

Whiteness (ASTM E313-00, ASTM E313-73, CIE, ISO2470/R457, AATCC, Hunter, Taube Berger Stensby)

Yellowness (ASTM D1925, ASTM E313-00, ASTM E313-73)

Blackness (My, dM)

Staining fastness, color change fastness

Tint (ASTM E313-00)

CMYK color density (A, T, E, M)

Metamerism index Milm

Munsell color system

Opacity

Color strength (tint strength, dye strength)

Illuminant conditions:

A, B, C, D50, D55, D65, D75, F1-F12, CWF, U30, U35, DLF, NBF, TL83, TL84, ID50, ID65, LED-B1, LED-B2, LED-B3, LED-B4, LED-B5, LED-BH1, LED-RGB1, LED-V1, LED-V2

Light source: Balanced full-band LED + UV

Observer angle: 2°, 10°

Standards compliant: CIE NO.15, GB/T 3978, GB 2893, GB/T 18833, ISO 7724-1, ASTM E1164, DIN 5033 Teil 7

Spectrophotometric method: Grating

Sensor: High-precision dual-row array CMOS sensor

Wavelength interval: 10 nm

Wavelength range: 360 – 740 nm

Reflectance measurement range: 0 – 200%

Reflectance resolution: 0.01%

Measurement & observation method: Visual observation

Calibration: Intelligent automatic calibration

Software support: Android, iOS, Windows, WeChat Mini Program

Accuracy guarantee: Achieves First-level metrology qualification

Measurement time: Approx. 1 second

Interface: USB, Bluetooth

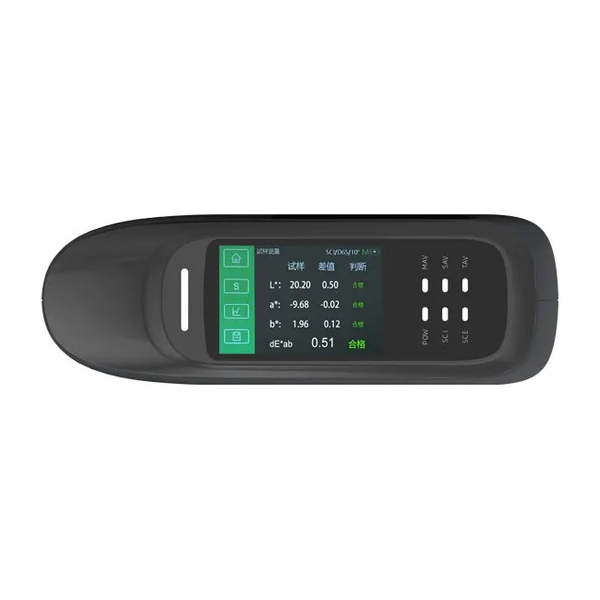

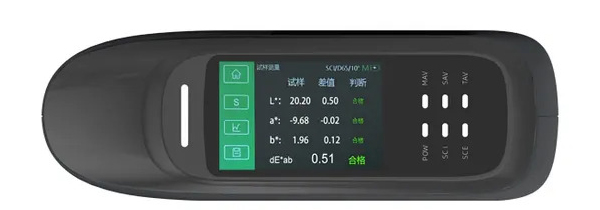

Display: 3.5-inch color display

Battery capacity: Approx. 8000 continuous measurements per charge, 7.2V / 3000mAh

Light source lifespan: Approx. 10 million uses over 10 years

Language: Simplified Chinese, English

Storage:

Device: 10,000 records

App: Mass storage

Dimensions: Approx. 230 × 78 × 93 mm

Weight: Approx. 590 g

Product Highlights

• Integrated Color & Gloss Measurement (2-in-1): With just a single click, the device simultaneously provides optical color data and surface gloss values of the material, saving time and equipment investment costs.

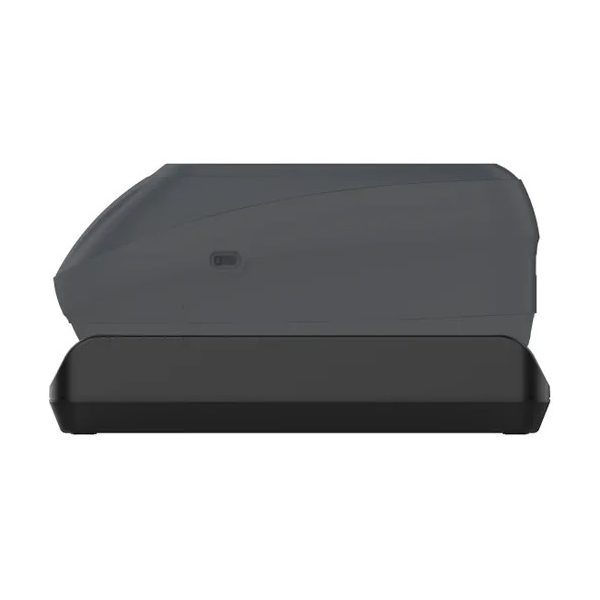

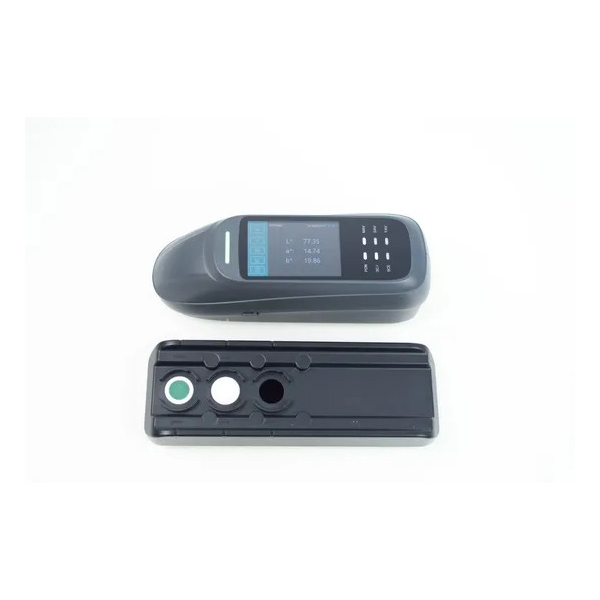

• Intelligent Auto-Calibration System: The device automatically recognizes and calibrates when placed into the calibration base (White/Black calibration) based on environmental factors, without complex manual operations. It integrates a BCRA green tile for wavelength accuracy self-calibration.

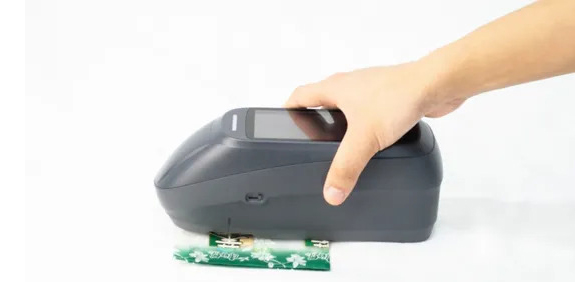

• Sample Positioning with Built-in Camera: Allows users to clearly see the actual area to be measured on the screen, preventing off-center placement or incorrect positioning on samples with complex patterns or ultra-small dimensions.
• NetProf Network Technology Support: Enables remote calibration and device synchronization via the internet, minimizing parameter drifts caused by component wear and tear over time.

Practical Industrial Applications

Thanks to its wide wavelength range from 360 – 740 nm and first-level metrology qualification hardware accuracy, the DC-26CG is widely applied in:

• Plastics & Rubber Industry: Inspecting the color of plastic pellets, plastic films, and molded products.
• Paints & Coatings Industry: Measuring and color matching for automotive paint and powder coatings, controlling color deviation between production batches.

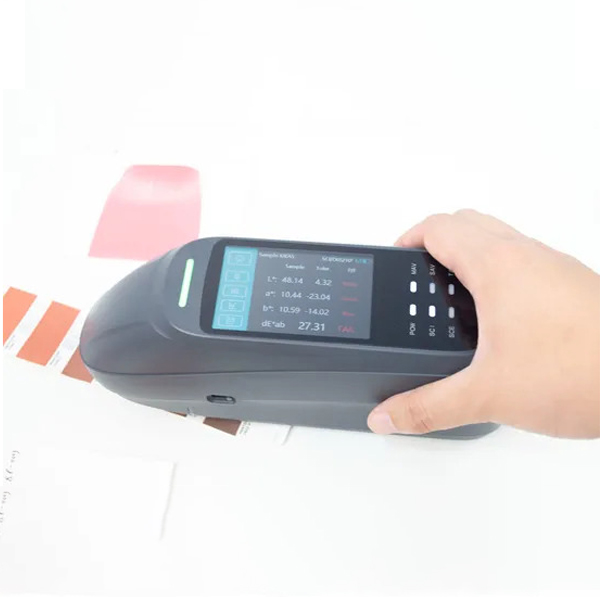

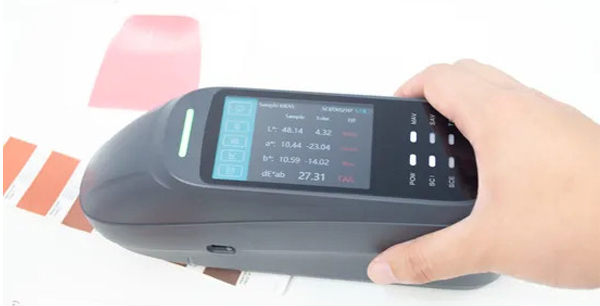

• Printing & Packaging Industry: Controlling printing ink density, ensuring brand packaging colors strictly match the Pantone color system.
• Textile & Leather Industry: Measuring the color of fabrics, yarns, and tanned leather, especially effective for fabrics using optical brighteners thanks to the built-in UV source.
• Electronics & Home Appliances Industry: Checking color uniformity of device enclosures and assembled plastic/metal components.
