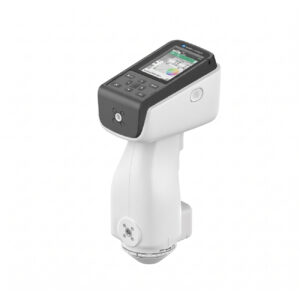

Konica Minolta CM-17d Spectrophotometer

Key Features of Konica Minolta CM-17d

Excellent Accuracy and Repeatability

Konica Minolta CM-17d features an advanced optical system that guarantees exceptionally high data repeatability and minimal Inter-Instrument Agreement (IIA) variation. This enables your global supply chain to seamlessly synchronize color data without the risk of measurement discrepancies between different manufacturing facilities.

Smart Vertical Design & Camera Viewfinder on Konica Minolta CM-17d

Ergonomic Design: The vertical orientation allows operators to easily and precisely position the instrument on the specimen surface, particularly on small parts or curved geometries.

Integrated Camera Viewfinder: A premium upgrade on the CM-17d is the camera viewfinder, which allows operators to see the exact measurement area in real-time, completely eliminating off-center positioning or targeting errors.

Simultaneous SCI and SCE Measurement

The instrument is capable of measuring both SCI (Specular Component Included) and SCE (Specular Component Excluded) modes simultaneously with a single button press. This feature provides a deeper analysis of how surface gloss influences actual color perception.

Modern and Flexible Connectivity

Sharp Color Display: Intuitive display of measurement results and colorimetric graphs directly on the instrument body.

Wireless Connectivity: Integrated with Bluetooth and a USB port, making it easy to transfer data to SpectraMagic NX2 color management software on PCs or mobile devices.

Technical Specifications of Konica Minolta CM-17d Spectrophotometer

Illumination / viewing system: di:8°, de:8° (diffuse illumination: 8° viewing angle), switchable between SCI (Specular Component Included) / SCE (Specular Component Excluded)

Integrating sphere size: Ø40 mm diameter

Detector: Dual 32-element silicon photodiode array

Spectral separation device: Planar diffraction grating

Wavelength range: 400 nm to 700 nm

Measurement wavelength pitch: 10 nm

Half bandwidth: Approx. 10 nm

Reflectance range: 0 to 175%; Output resolution: 0.01%

Light source: Pulsed Xenon lamp (with UV cut filter)

Measurement time: Approx. 0.7 seconds (measurement mode: SCI or SCE, from trigger button press to measurement completion)

Minimum measurement interval: Approx. 1.5 seconds (measurement mode: SCI or SCE)

Battery performance: Approx. 2,000 measurements (approx. 1,000 measurements when utilizing the optional WLAN/Bluetooth module) when measured at 10-second intervals at 23°C using the dedicated lithium-ion battery without using the camera viewfinder

Measurement / illumination area: MAV: Ø8 mm / Ø11 mm, SAV: Ø3 mm / Ø6 mm
Can be changed by replacing the target mask and switching the lens position

Repeatability: Standard deviation within ΔE*ab 0.02
(When a standard white calibration plate is measured 30 times at 5-second intervals after white calibration under Konica Minolta standard conditions)

Inter-instrument agreement: Within ΔE*ab 0.12
(Based on the average of 12 BCRA Series II color tiles; MAV SCI; compared to values measured with the master body under Konica Minolta standard conditions)

Display: 2.7-inch color TFT display with auto-rotation mode

Internal performance check*1: WAA (Wavelength Analysis & Adjustment) technology

Interfaces: USB 2.0; WLAN (IEEE 802.11 b/g/n)/Bluetooth (Ver.4.1, SPP compatible) Optional WLAN/Bluetooth module required*2 *3

Camera viewfinder function: Utilizes internal camera; images can be displayed on the screen

Standard observers: 2° Standard Colorimetric Observer, 10° Standard Colorimetric Observer

Illuminants: A, C, D50, D65, F2, F6, F7, F8, F10, F11, F12, ID50, ID65, LED-B1, LED-B2, LED-B3, LED-B4, LED-B5, LED-BH1, LED-RGB1, LED-V1, LED-V2, User-defined illuminant*4 (Up to 3 types) (Simultaneous evaluation under two light sources is possible)

Display items: Colorimetric values/graphs, color-difference values/graphs, spectral graphs, PASS/FAIL judgment, pseudocolor

Color spaces: Lab*, LCh, Hunter Lab, Yxy, XYZ, and color-difference evaluation within these systems; Munsell (C)

Indices: MI, WI (ASTM E313-73/ASTM E313-98); YI (ASTM E313-73, ASTM D1925); ISO Brightness (ISO 2470); WI/Tint (CIE); Tristimulus Strength; Opacity; Gray Scale (ISO 105-A05); Gloss Value; User Index*5, Blackness (My) (ISO 18314-3/DIN 55979); Blackness (Mc) (ISO 18314-3); Undertone (dM) (ISO 18314-3)

Color difference equations: ΔEab (CIE1976); ΔE94 (CIE1994); ΔE00 (CIEDE2000); CMC (l:c); Hunter ΔE; DIN99o; FMC-2; ΔE*94 (Special)*6

Data storage memory: 1,000 target data sets + 5,000 sample data sets

Power supply:
AC Power: USB Type-C AC adapter (supports Power Delivery, 15 W or higher)
Battery: Lithium-ion battery pack (removable)
USB Charging: USB bus power (with lithium-ion battery installed)
Charging Time: Approx. 3.5 hours (fast charge) / Approx. 6 hours (standard charge)

Dimensions: Approx. 79 (W) × 230 (H) × 128 (D) mm

Weight: Approx. 700 g (including lithium-ion battery)

Operating temperature/humidity range: Temperature: 5 to 40°C; Relative humidity: 80% or less (at 35°C) non-condensing

Storage temperature/humidity range: Temperature: 0 to 45°C; Relative humidity: 80% or less (at 35°C) non-condensing
